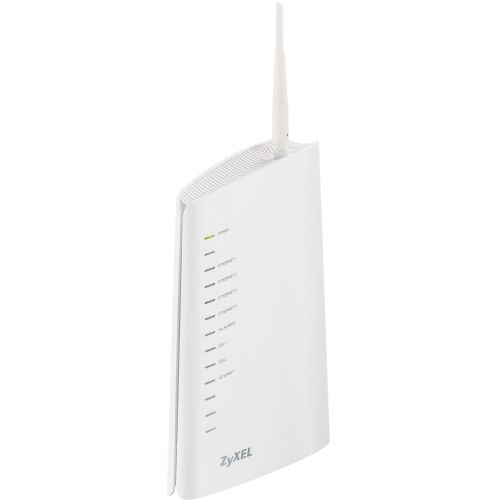

Zyxel P663HN-51 IEEE 802.11n Modem/Wireless Router - 2.40 GHz ISM Band - 2 x Antenna - 300 Mbit/s Wireless Speed - 4 x Network Port - Fast Ethernet - Desktop - ENERGY STAR, RoHS, WEEE Compliance P663HN-51

ZyXEL P663HN-51 IEEE 802.11n Modem/Wireless Router - 2.40 GHz ISM Band - 2 x Antenna - 300 Mbit/s Wireless Speed - 4 x Network Port - Fast Ethernet - Desktop - ENERGY STAR, RoHS, WEEE Compliance

High-Speed ADSL2+ Bonded Internet AccessLoop bonding technology provides the telecom industry with a revolutionary technique to combine multiple ADSL2+ connections into a single, aggregated connection. Supporting up to ultra-high 48 Mbps downstream and 2 Mbps upstream data rates, as well as high-speed data and derived voice applications, service providers can offer advanced bandwidth-dependent services such as broadcast video and video on demand (VOD) to customers beyond the reach of central offices or digital loop carriers. Bonded ADSL2+ supports multiple high-definition television streams at significantly longer distances than other existing xDSL technologies.

Technical Specifications:
Wi-Fi Generation: Wi-Fi 4
Broadband Transmission Technology: ADSL2+
Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: No
ISM Maximum Frequency: 2.40 GHz
Total Number of Antennas: 2
Antenna Gain: 3 dBi
Total Wireless Transmission Speed: 37.50 MB/s
Wireless Security: WEP 64/128 bit, WPA, WPA-PSK, WPA2, WPA2-PAK, WPS, IEEE 802.1x, RADIUS
Features: Quality of Service (QoS)
Ethernet Port: Yes
Fast Ethernet Port: Yes
Gigabit Ethernet Port: No
Number of Network (RJ-45) Ports: 4
VGA: No
Serial: No
USB: No
Powerline: No
PoE (RJ-45) Port: No
Management Port: No
Number of Broadband (RJ-11) Ports: 1
Ethernet Technology: Fast Ethernet
Management: HTTP Web GUI, CLI, Telnet, Text based configuration, SNMP v1, v2, MIB II, TR-069, TR-098, IEEE 802.1Q VLAN
Security Features: MAC Address Filter, DoS, SPI, Protocol and Generic Packet Filter, SSH, PAP, CHAP, MS-CHAP v1/v2, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP, LEAP, NAT
Input Voltage: 12 V DC
Power Source: AC Adapter
Form Factor: Desktop
Height: 2.5"
Width: 9.5"
Depth: 6.5"
Weight (Approximate): 1.30 lb
System Requirements:

Operating Systems:

Windows XP, Windows Vista, Windows NT, Windows 2000, Mac OS X 10.5, Linux Ubuntu 8 (GNOME)/openSUSE 10.3 (KDE)
Certifications & Standards:

IEEE Standards:

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3, IEEE 802.3u

EMC:

EN55022 Class B, EN61000-3-2: 2000, EN61000-3-3: 1995+A1: 2001, FCC Part 15 (Class B) & FCC Part 68

Safety:

CSA 60950-1, UL 60950-1, EN 60950-1: 2001+A11, IEC 60950-1: 2001
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE, ENERGY STAR
