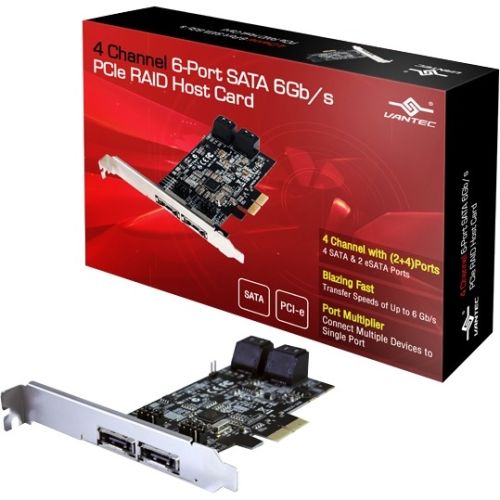

Vantec 4 Channel 6-Port SATA 6Gb/s PCIe RAID Host Card - Serial ATA/600 - PCI Express x4 - Plug-in Card - RAID Supported - 0, 1, 10 RAID Level - 6 Total SATA Port(s) - 4 SATA Port(s) Internal - 2 SATA Port(s) External - PC UGT-ST644R

Vantec 4 Channel 6-Port SATA 6Gb/s PCIe RAID Host Card - Serial ATA/600 - PCI Express x4 - Plug-in Card - RAID Supported - 0, 1, 10 RAID Level - 6 Total SATA Port(s) - 4 SATA Port(s) Internal - 2 SATA Port(s) External - PC UGT-ST644R
Brand: Vantec
Part Number: UGT-ST644R
MSRP: $66.99
Availability: 10 or more
Condition: New
Price: $55.00
Qty:     - OR -   Add to Wish List
Add to Compare
Vantec 4 Channel 6-Port SATA 6Gb/s PCIe RAID Host Card - Serial ATA/600 - PCI Express x4 - Plug-in Card - RAID Supported - 0, 1, 10 RAID Level - 6 Total SATA Port(s) - 4 SATA Port(s) Internal - 2 SATA Port(s) External - PC

The UGT-ST644R design encompasses great design and server technology into simple RAID Host controller. It uses the latest storage technology to bring SSD caching storage to the HDD drive to gain unparalleled access speed. This RAID Host controller enables the use of the industry''s newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 3Gb/s or 1.5Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Come standard for PCI Express 2.0 to double the bandwidth of the existing PCI Express bus for faster data throughput thus enhancing system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It is also backward compatible with previous generation of PCI Express 1.0 technology. Using the onboard RAID firmware, the 4 SATA drives attached to this controller can be easily configured as 4 individual ports with no RAID or with RAID 0, RAID 1, RAID 10, and HyperDuo capabilities.


Technical Specifications:
Host Interface: PCI Express x4
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10
Total Number of SATA Ports: 6
Number of SATA Ports (Internal): 4
Number of SATA Ports (External): 2
Height: 2.7"
Width: 4.4"
Thickness: 0.7"
Form Factor: Plug-in Card
Package Contents: 4 Channel 6-Port SATA 6Gb/s PCIe RAID Host Card, 1 x Driver CD, 1 x User Manual, 1 x Low Profile Bracket, 2 x SATA Cables
Platform Supported: PC
Environmentally Friendly: Yes
Environmental Certification: WEEE
