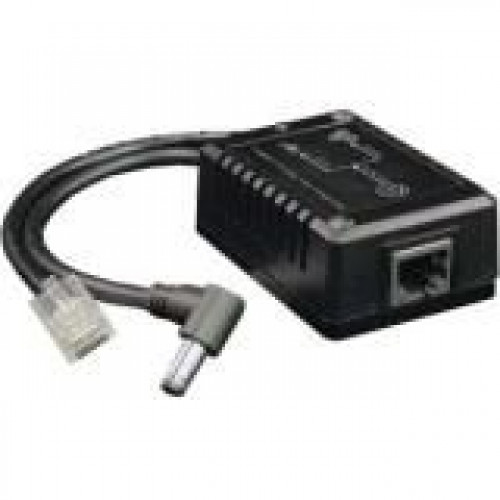

Tycon Power 802.3af PoE Splitter, 5VDC 12W Output - 48 V DC Input - 5 V DC, 2.40 A Output - 1 PoE Input Port(s) - 1 10/100Base-T Output Port(s) - 12 W POE-MSPLT-4805

POE-MSPLT-4805 is a 10/100Mb splitter to power a non PoE device using PoE. It has an 802.3af/at or 48VDC Passive PoE input. The 12W DC output is via a standard 5.5mm/2.1mm barrel connector on a 6in cable. Data output is thru a 6in CAT5 cable terminated with an RJ45 connector.These PoE splitters are the perfect solution for running 5VDC devices like switches and sensors from a 802.3af or 802.3at or 48VDC Passive PoE source. Wide -25 to +50C temperature range enables outdoor applications when mounted in weatherproof enclosures.Inputs and outputs are isolated. They have protections for short circuit and over-current.
