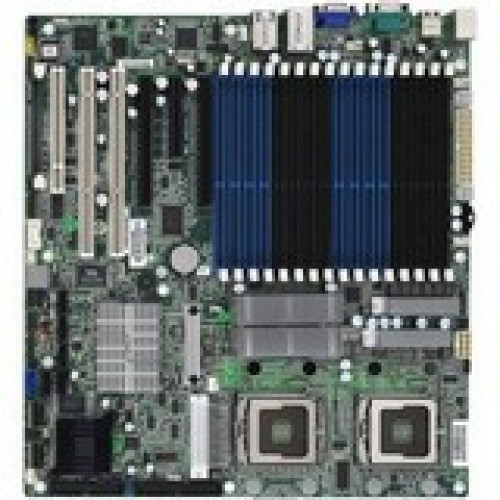

Tyan Tempest (S5397) Server Motherboard - Intel Chipset - Socket J LGA-771 - 128 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces S5397T26W8H

Tyan Tempest (S5397) Server Motherboard - Intel Chipset - Socket J LGA-771 - 128 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

The latest Tyan DP server platform supports the 45nm Quad-Core Xeon 5400 series processors and the 5400 chipset (Seaburg). The Tempest i5400PW S5397 is an excellent solution for running memory intensive server applications and HPC needs.

Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: i5400B
Total Processor Supported: 2
Processor Socket: Socket J LGA-771
Processor Supported: Xeon Quad-core, Xeon Dual-Core
Front Side Bus: 1600 MHz, 1333 MHz, 1066 MHz
64-bit Processing: Yes
Number of Memory Slots: 16
Maximum Memory Supported: 128 GB
Memory Standard: DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200
Memory Technology: DDR2 SDRAM
Memory Speed Supported: 800 MHz, 667 MHz, 533 MHz
Controller Type: Floppy Controller, Serial Attached SCSI (SAS), Serial ATA/300, Ultra ATA
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: XGI
Graphics Controller Model: Z9S
Graphics Controller Memory: 32 MB
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC262
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Number of PCI Slots: 1
Number of PCI-X Slots: 2
Total Number of PCI Express Slots: 3
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 2
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of IDE Interfaces: 1
Number of SATA Interfaces: 6
Number of SAS Interfaces: 2
Total Number of Onboard USB Ports: 1
Total Number of Onboard FireWire/i.LINK Ports: 2
Onboard LEDs Header: Yes
Onboard Audio Header: Yes
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Additional Information:

BIOS:

Phoenix BIOS on 8Mbit Flash ROM, Support APM 1.2, ACPI 1.0b, Serial Console Redirect, PXE via Ethernet, USB device boot, PnP, DMI 2.0, WfM 2.0 Power Management, User-configurable H/W monitoring, Auto-configuration of hard disk types, Multiple boot options, 48-bit LBA support
