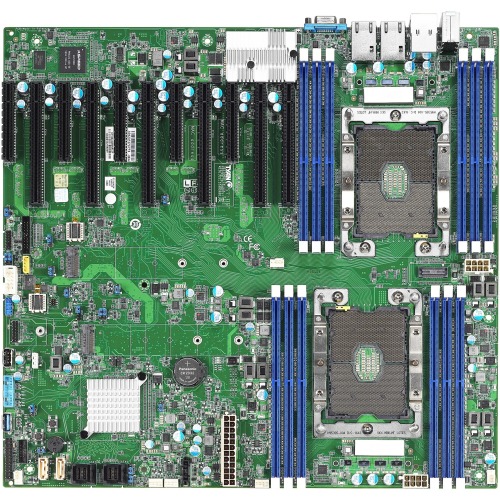

Tyan Tempest HX S7105 Workstation Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 12 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x SATA Interfaces S7105AGM2NR-2T

Tyan Tempest HX S7105 Workstation Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 12 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x SATA Interfaces S7105AGM2NR-2T
Brand: TYAN
Part Number: S7105AGM2NR-2T
MSRP: $1,285.99
Availability: 10 or more
Condition: New
Price: $1,071.01
Qty:     - OR -   Add to Wish List
Add to Compare
Tyan Tempest HX S7105 Workstation Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - RDIMM, DIMM, LRDIMM - 12 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 12
Memory Form Factor: RDIMM, DIMM, LRDIMM
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2666 MHz
Controller Type: Serial ATA/600
Intel RSTe: Yes
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Audio Channels: 2.1
Gigabit Ethernet: Yes
10Gigabit Ethernet: Yes
Number of Total Expansion Slots: 11
Total Number of PCI Express Slots: 11
Number of PCI Express x8 Slots: 5
Number of PCI Express x16 Slots: 6
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 2
Number of Mini-SAS Interfaces: 2
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 1
Number of Onboard USB 3.0 Ports: 1
Form Factor: Proprietary Form Factor
Width: 14.2"
Depth: 13.2"
Package Contents:
    Tempest HX S7105 High Performance Xeon Scalable Workstation, 1 x Quick Installation Guide, 1 x TYAN Device Driver CD

Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Country of Origin: Taiwan
