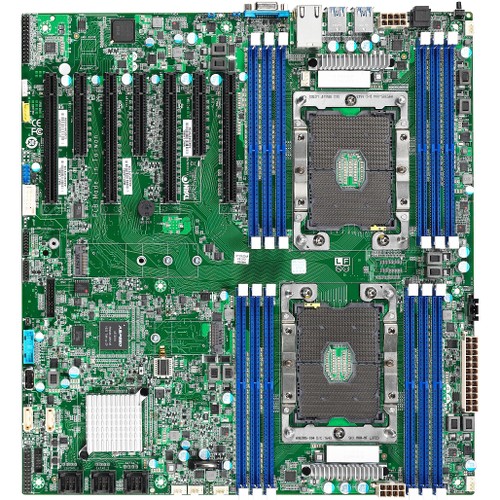

Tyan Tempest HX S7100 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 2 x SATA Interfaces S7100GM2NR

Tyan Tempest HX S7100 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 2 x SATA Interfaces S7100GM2NR
Brand: TYAN
Part Number: S7100GM2NR
MSRP: $912.99
Availability: 10 or more
Condition: New
Price: $760.20
Qty:     - OR -   Add to Wish List
Add to Compare
Tyan Tempest HX S7100 Server Motherboard - Intel Chipset - Socket P LGA-3647 - 1.50 TB DDR4 SDRAM Maximum RAM - DIMM, LRDIMM, RDIMM - 12 x Memory Slots - Gigabit Ethernet - 4 x USB 3.0 Port - 2 x SATA Interfaces

TYAN Tempest HX S7100 Dual-socket server/workstation motherboardThe Tempest HX S7100 motherboard is designed to be an ideal platform for both GPU workstations and general purpose server applications. As a workstation motherboard, the S7100 features onboard audio and allows the use of 4 GPU cards. This enables maximum performance in technical computing workloads such as Engineering Analysis, 3D Design, Photorealistic Rendering, Image Manipulation, Media & Entertainment Creation, and Energy Exploration. With much of modern high performance workstation applications featuring support for VGA offloading and all four PCIe x16 slots being a full electrical x16 link, Tyan''s Tempest HX S7100 is one of the most powerful workstation motherboards on the market today. The Tempest HX S7100 is also a versatile platform for many server applications. With a total of 7 PCIe slots, it lends itself well to many high I/O applications such as Video Walls, Large Scale Video Capture, Surveillance, Industrial Automation, and general purpose server workloads. The board design also lends itself to offering support for true full length 12.3" PCIe cards. Key FeaturesXeon Scalable Processor Family Up to 28 CPU cores per socket 50% Increased memory bandwidth with 6 memory channels per socket Memory speeds up to DDR4-2667 (depending on CPU SKU) No slowdown in memory speed when deploying 2 DIMMs per channel Increased PCIe connectivity to 48 PCIe Gen3.0 lanes per CPU socket Optional Integrated Intel Omni-Path Architecture Host Fabric Interface Native support for up to 14 SATA ports New Ultra Path Interconnect New Advanced Vector Extensions 512 (AVX-512) 7 PCIe slotsTyan''s Tempest HX S7100 motherboards offers maximum expansion within a standard 12" x 13" SSI EEB form factor: (4) PCIe Gen 3.0 x16 (2 slots from CPU0; 2 slots from CPU1) (3) PCIe Gen 3.0 x8 (1 slot from CPU0; 2 slots from CPU1) These PCIe slots are full bandwidth and do not use any PCIe switches or MUX devices. A balanced approach was taken to system I/O, and both CPUs have an even amount of x16 slots. 205W CPU SupportThe Intel Xeon Scalable Processor Family features processors with a maximum TDP of up to 205W. With this in mind, the VRM of the s7100 motherboard has been designed to power the most demanding of the Xeon SP lineup. Optional HD AudioPowered by an optional Realtek ALC892, the s7100 workstation motherboard offers 7.1 Channel HD Audio via internal header and on-board optical S/PDIF output. 4 GPU SupportPaired with a workstation or 3U chassis, the s7100 supports the use of four double-wide GPU cards. This makes it an excellent choice for GPU powered workstations and servers which offload much of the computational workload to powerful VGA cards and GPU accelerators. Dual Port SATA DOM and NVMe M.2The s7100 provides multiple options for compact boot drive support in space constrained server chassis, including a pair of NVMe M.2 and another pair of SATA DOM ports with Pin-8 power support. IPMI 2.0 with Redfish SupportFeaturing AMI Megarac firmware, the s7100 motherboard offers support for IPMI 2.0 with iKVM and the DMTF Redfish management protocol Target Applications GPU Workstations Industrial Automation Video Walls Large Scale Video Capture General Purpose Server Applications Full Length 12.3" PCIe card deployment


Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621
Total Processor Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
Number of Memory Slots: 12
Memory Form Factor: DIMM, LRDIMM, RDIMM
Maximum Memory Supported: 1.50 TB
Memory Technology: DDR4 SDRAM
Controller Type: Serial ATA/600
Intel RSTe: Yes
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2500
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 3
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
VGA: Yes
Number of SATA Interfaces: 2
Number of Mini-SAS Interfaces: 3
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 5
Number of Onboard USB 3.0 Ports: 2
Form Factor: SSI EEB
Width: 13"
Depth: 12"
Package Contents:
    Tempest HX S7100 Server Motherboard, 1 x Quick Installation Guide, 1 x TYAN Device Driver CD

Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE
Country of Origin: Taiwan
