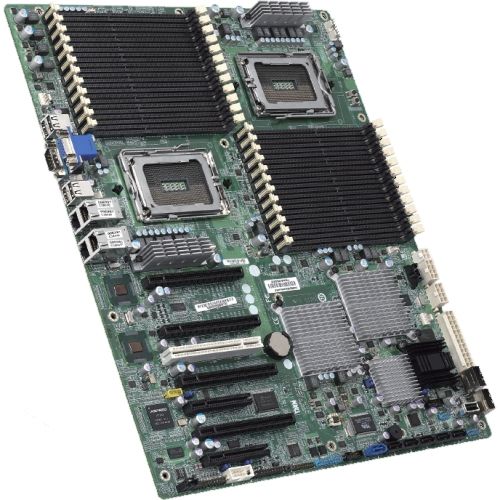

Tyan S8232 Server Motherboard - AMD Chipset - Socket G34 LGA-1944 - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 24 x Memory Slots - 4 x RJ-45 - 6 x SATA Interfaces - RoHS-6 Compliance S8232GM4NR

Tyan S8232 Server Motherboard - AMD Chipset - Socket G34 LGA-1944 - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 24 x Memory Slots - 4 x RJ-45 - 6 x SATA Interfaces - RoHS-6 Compliance S8232GM4NR
Brand: TYAN
Part Number: S8232GM4NR
MSRP: $960.99
Availability: 10 or more
Condition: New
Price: $800.44
Qty:     - OR -   Add to Wish List
Add to Compare
Tyan S8232 Server Motherboard - AMD Chipset - Socket G34 LGA-1944 - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - DIMM - 24 x Memory Slots - 4 x RJ-45 - 6 x SATA Interfaces - RoHS-6 Compliance

The S8232 not only empowers you in today''s demanding IT environment but also offers a smooth path for future application upgradeability. All of these rich feature sets provides the S8232 with the power and flexibility to meet demanding requirements for today''s IT environments.


Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: SR5690
Total Processor Supported: 1
Processor Technology: HyperTransport 3.0 Technology
Processor Socket: Socket G34 LGA-1944
Processor Supported: Opteron
HyperTransport Speed (MHz): 3.2
64-bit Processing: Yes
Multi GPU Supported: SLI
Number of Memory Slots: 24
Memory Form Factor: DIMM
Maximum Memory Supported: 256 GB
Memory Standard: DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1333 MHz, 1066 MHz, 800 MHz
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Graphics Controller Memory: 128 MB
Number of Total Expansion Slots: 7
Number of PCI Slots: 1
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 6
Number of PCI Express x4 Slots: 2
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 5
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Buttons & Keys: Power
Operating Power Consumption: 105 W
Power Supply Supported: EPS12V
Form Factor: SSI MEB
Width: 16"
Depth: 13"
Package Contents: S8232 Server Motherboard, 1 x User Manual, 1 x Quick Reference Guide, 1 x Installation CD, 1 x IO Shield, 6 x SATA Signals Cables
Certifications & Standards: FCC, CE
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
