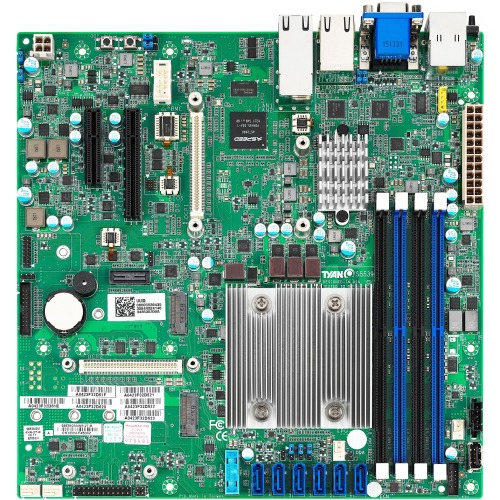

Tyan S5539 Server Motherboard - Intel Chipset - Intel Xeon D-1521 Quad-core (4 Core) 2.40 GHz - 1 Pack - Micro ATX - 128 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - DIMM, UDIMM, RDIMM - 4 x Memory Slots - Serial ATA/600 Controller - On-b

Tyan S5539 Server Motherboard - Intel Chipset - Intel Xeon D-1521 Quad-core (4 Core) 2.40 GHz - 1 Pack - Micro ATX - 128 GB DDR4 SDRAM Maximum RAM - 2.13 GHz Memory Speed Supported - DIMM, UDIMM, RDIMM - 4 x Memory Slots - Serial ATA/600 Controller - On-board Video Chipset - 2 x USB 3.0 Port - ASPEED AST2400 - Gigabit Ethernet - 1 x PCI Express x4 Slots - 1 x PCI Express x8 Slots - 2 x USB Ports - VGA - 6 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Xeon
Integrated Processor Model: D-1521
Integrated Processor Speed: 2.40 GHz
Integrated Processor Core: Quad-core (4 Core)
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM, RDIMM
Maximum Memory Supported: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 2133 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 2
Number of USB 3.0 Ports: 2
VGA: Yes
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 3
Number of Onboard USB 3.0 Ports: 2
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Package Contents:

S5539 Server Motherboard (BTO), 1 x Quick Installation Guide, 1 x TYAN Device Driver CD

Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE
Country of Origin: Taiwan
