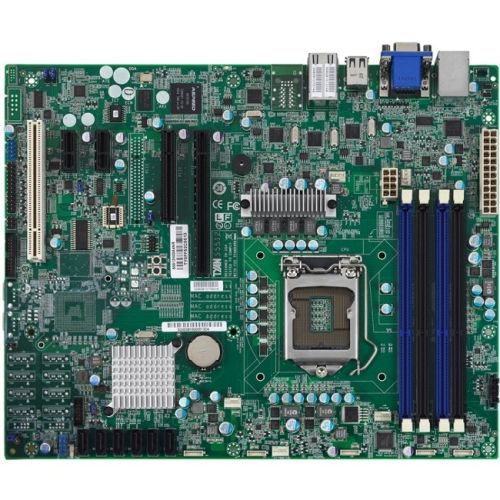

Tyan S5512-LE Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 6 x SATA Interfaces - China RoHS, RoHS-6, WEEE

Tyan S5512-LE Server Motherboard - Intel Chipset - Socket H2 LGA-1155 - 32 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500 - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x RJ-45 - 6 x SATA Interfaces - China RoHS, RoHS-6, WEEE Compliance
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C202
Total Processor Supported: 1
Processor Socket: Socket H2 LGA-1155
Processor Supported: Xeon, Core i3
64-bit Processing: Yes
Number of Memory Slots: 4
Memory Form Factor: DIMM, UDIMM
Maximum Memory Supported: 32 GB
Memory Standard: DDR3-1333/PC3-10600, DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1333 MHz, 1066 MHz
Controller Type: Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1, 5, 1+0
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2150-GP-V
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 5
Number of PCI Slots: 1
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 4
Number of PCI Express x1 Slots: 2
Number of PCI Express x8 Slots: 1
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
Audio Line In: No
Audio Line Out: No
Microphone Port: No
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 4
Number of Onboard USB 2.0 Ports: 4
Onboard LEDs Header: Yes
Power Supply Supported: ATX12V
Form Factor: ATX
Width: 12"
Depth: 9.6"
Package Contents: S5512-LE Server Motherboard, 1 x User's Manual, 1 x Quick Ref. Guide, 1 x Installation CD, 1 x I/O Shield, 6 x SATA Signal Cables, 1 x USB2.0 Cable, 1 x I/O shield Installation Guide
Certifications & Standards: FCC Class B, CE
Environmentally Friendly: Yes
Environmental Certification: RoHS-6, WEEE, China RoHS
