Tyan S8212WGM3NR Server Motherboard - AMD Chipset - Socket F LGA-1207 - 128 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces - RoHS-6 Compliance S8212WGM3NR

Tyan S8212WGM3NR Server Motherboard - AMD Chipset - Socket F LGA-1207 - 128 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces - RoHS-6 Compliance S8212WGM3NR
Brand: TYAN
Part Number: S8212WGM3NR
MSRP: $598.99
Availability: 10 or more
Condition: New
Price: $498.56
Qty:     - OR -   Add to Wish List
Add to Compare
Tyan S8212WGM3NR Server Motherboard - AMD Chipset - Socket F LGA-1207 - 128 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200 - 16 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces - RoHS-6 Compliance

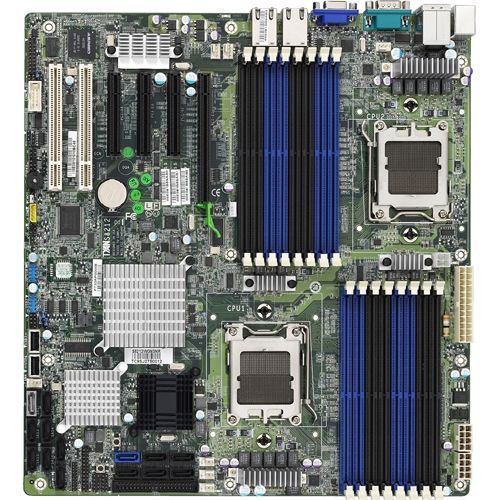

The TYAN S8212 supports Dual AMD Opteron 2300/2400 series processors and up to 128GB REG/ECC memory. The TYAN S8212 is configured with 3 GbE LAN ports, one IDE connector, 6 SATA-II connectors, 8 SAS connectors and 8 USB ports. The S8212 offers exceptional performance for your server platform needs.


Technical Specifications:
Chipset Manufacturer: AMD
Chipset Model: SR5690
Total Processor Supported: 2
Processor Technology: HyperTransport Technology
Processor Socket: Socket F LGA-1207
Processor Supported: Opteron Quad-Core
HyperTransport Speed (MHz): 6400
64-bit Processing: Yes
Number of Memory Slots: 16
Maximum Memory Supported: 128 GB
Memory Standard: DDR2-800/PC2-6400, DDR2-667/PC2-5300, DDR2-533/PC2-4200
Memory Technology: DDR2 SDRAM
Memory Speed Supported: 800 MHz, 667 MHz, 533 MHz
Controller Type: Serial Attached SCSI (SAS), Serial ATA/300
RAID Supported: Yes
RAID Levels: 0, 1
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2050
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 5
Number of PCI Express x8 Slots: 4
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 2
Number of USB 2.0 Ports: 2
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
PS/2 Port: Yes
Number of PS/2 Ports: 1
Number of SATA Interfaces: 6
Number of SAS Interfaces: 8
Total Number of Onboard USB Ports: 4
Onboard LEDs Header: Yes
Form Factor: Extended ATX
Width: 12"
Depth: 13"
Package Contents: S8212 Series S8212WGM3NR Server Motherboard, 6 x SATA cable, 2 x SAS Cable, 1 xUser Manual, 1 x Quick Reference guide, 1 x Installation CD, 1 x I/O Shield, 2 x CPU Mounting Kit
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
