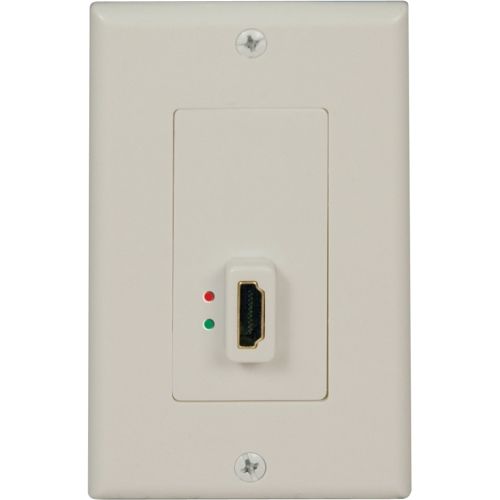

Tripp Lite HDMI Display-Side Wallplate with Active Signal Booster F/F - 2 x Socket(s) - HDMI Video - White - RoHS Compliance P166-001-A

Tripp Lite HDMI Display-Side Wallplate with Active Signal Booster F/F - 2 x Socket(s) - HDMI Video - White - RoHS Compliance

Tripp Lite''s P166-001-A HDMI Display-side Wallplate with Signal Booster increases the distance a 1080p (24Hz) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports video resolutions up to 1080p, and a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the P166-001-A, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. HDCP compliant.

Technical Specifications:
Total Number of Sockets: 2
Mount Type: Wall Mount
Features: Extend a 1080p (24Hz) HDMI signal up to 150 ft. from the source, When extending a 1080p (24Hz) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD, 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable, Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Number of HDMI Ports: 2
Product Color: White
Package Contents: HDMI Display-side Wallplate, Signal Booster
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
