Tripp Lite 24-Fiber MTP MPO OM4 Base-8 MMF Trunk Cable 40/100GbE 3X, 61M - Fiber Optic for Network Device - 12.50 GB/s - 200.13 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 50/125 µm - Magenta N858-61M-3X8-MG

Tripp Lite 24-Fiber MTP MPO OM4 Base-8 MMF Trunk Cable 40/100GbE 3X, 61M - Fiber Optic for Network Device - 12.50 GB/s - 200.13 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 50/125 µm - Magenta N858-61M-3X8-MG
Brand: Tripp Lite
Part Number: N858-61M-3X8-MG
MSRP: $2,445.99
Availability: 10 or more
Condition: New
Price: $2,038.13
Qty:     - OR -   Add to Wish List
Add to Compare
Tripp Lite 24-Fiber MTP MPO OM4 Base-8 MMF Trunk Cable 40/100GbE 3X, 61M - Fiber Optic for Network Device - 12.50 GB/s - 200.13 ft - 3 x MTP/MPO Female Network - 3 x MTP/MPO Female Network - 50/125 µm - Magenta

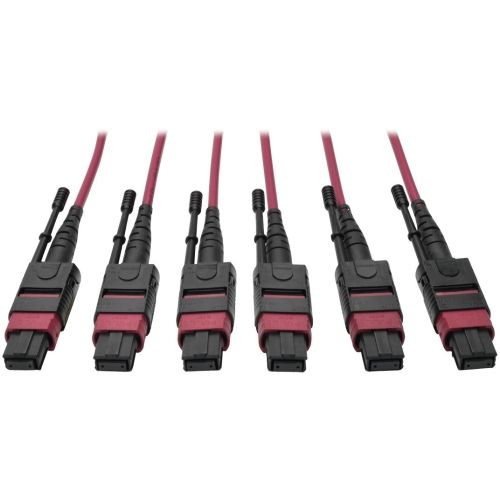

The 61-meter (200-foot) N858-61M-3X8-MG MTP/MPO Multimode Base-8 Trunk Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers.With three female MTP/MPO connectors on each end, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDFs (intermediate distribution frames). It''s colored magenta for instant identification as an OM4 cable. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The 8-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up rack space for other cables. Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks, this cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. The 5.6-millimeter ruggedized plenum-rated jacket and bend-insensitive fiber are perfect for connecting high-speed network components in ceilings, walls and ducts. Features OM4-Rated for 40/100 Gb Ethernet Applications Designed to extend high-density connections between network equipment in telecom rooms and data centers Recommended for patching between data center MDFs and IDFs Optimized for QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 networks Magenta-colored for identification as an OM4 cable MTP/MPO Connectors with Push/Pull Tabs 8-fiber female connectors 12 times denser than SC connectors Push/pull tab connectors easy to install and remove with one hand 100% tested for low insertion loss and back reflection Error-Free Signal Transfer 50/125 duplex glass fiber construction Plenum-rated jacket and bend-insensitive fiber perfect for ceilings, walls and ducts


Technical Specifications:
Cable Type: Fiber Optic
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 200.10 ft
Connector Type on First End: MTP/MPO Network - Female
Connector on First End Details: 3 x MTP/MPO Network - Female
Connector Type on Second End: MTP/MPO Network - Female
Connector on Second End Details: 3 x MTP/MPO Network - Female
Device Supported: Network Device
Data Transfer Rate: 100 Gbit/s
Product Color: Magenta
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
