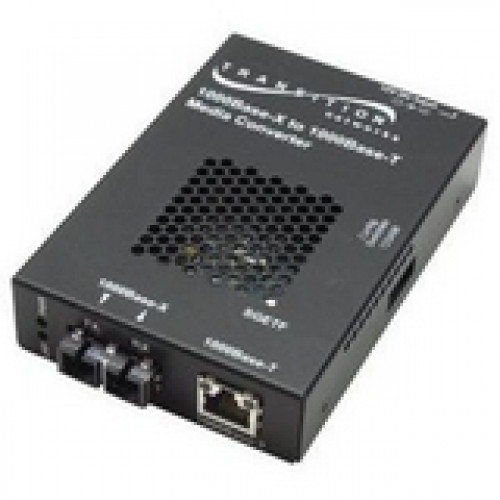

TRANSITION NETWORKS SGETF1014-110 Gigabit Ethernet Media Converter - 1 x RJ-45 , 1 x SC - 1000Base-T, 1000Base-LX - Wall-mountable - TAA Compliance SGETF1014-110-NA

Transition Networks SGETF1014-110 Gigabit Ethernet Media Converter - 1 x RJ-45 , 1 x SC - 1000Base-T, 1000Base-LX - Wall-mountable - TAA Compliance

This converter will automatically re-establish link in all network conditions. Supports Transparent Link Pass Through which sends a link-loss signal over the fiber, instructing the remote converter to shut down the copper port thus notifying the end device while maintaining the fiber link between the two converters. Allows Pause signaling feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.

Technical Specifications:
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
Media Type Supported: Twisted Pair, Optical Fiber
Fiber Mode Supported: Single-mode
Maximum Distance Supported: 6.21 Mile
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T, 1000Base-LX
Form Factor: Rack-mountable, Wall Mountable
Height: 1"
Width: 3.3"
Depth: 4.8"
Additional Information: SW1: Remote Fiber Fault Detect (Down=Enabled), SW2: Symmetric Pause, SW3: Asymmetric Pause, SW4: Transparent Link Pass Through (UP=Enabled), SW5: Fiber Auto-Negotiation (Down=Enabled), SW6: Loopback (Down=Enabled)
Country of Origin: United States
