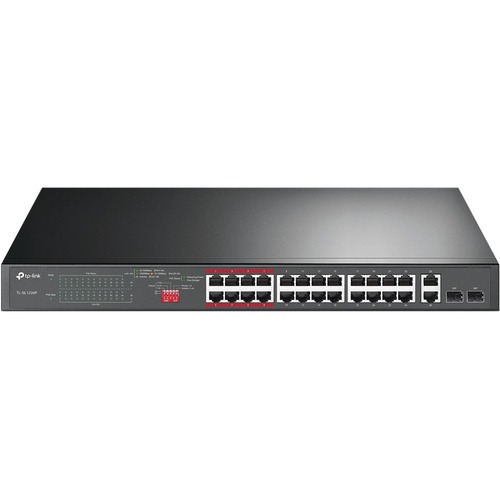

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch - 24 Ports - 2 Layer Supported - Twisted Pair, Optical Fiber - 2 Year Limited Warranty TL-SL1226P

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch - 24 Ports - 2 Layer Supported - Twisted Pair, Optical Fiber - 2 Year Limited Warranty

Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE BudgetCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.Dedicated Design for IP Surveillance-Up to 250 m Transmission With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas. Dedicated Design for IP Surveillance-Higher Performance and Security Priority Mode and Isolation Mode make surveillance smoother and safer.Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-8 when one-touch Priority Mode is on. One-Click Traffic Separation for Ports 1-24 With one click, Isolation Mode easily divides traffic for ports 1-24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. Smooth HD Video Monitoring2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.Plug and PlayIntelligent Power Management to Prevent Power OverloadWhen your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. Wide Operating Temperature with Good Heat Dissipation Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0-50?) with reliability.

Technical Specifications:
Total Number of Network Ports: 26
Network (RJ-45): Yes
Port/Expansion Slot Details: 24 x Fast Ethernet PoE+, 2 x Gigabit Ethernet TP/SFP Combo
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Fast Ethernet, Gigabit Ethernet
Network Technology: 10/100Base-T, 1000Base-T, 1000Base-X
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Layer Supported: 2
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 Hz, 60 Hz
Power Source: Power Supply
Power Consumption: 18.32 W
Product Material: Metal
Height: 1.7"
Width: 17.3"
Depth: 7.1"
Package Contents:

24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch, Power Cable, Installation Guide, 2 x Mounting Brackets and the Fittings

Country of Origin: China
