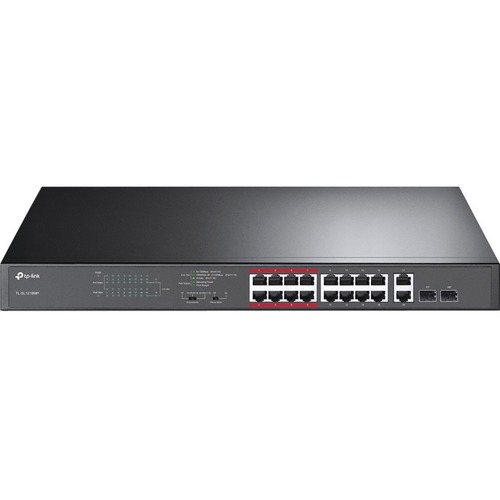

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch - 16 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Rack-mountable TL-SL1218MP

TP-LINK 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch - 16 Ports - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - Rack-mountable

Easy to Use PoE Switch with Innovative Design Up To 250m Data and Power Transmission for Surveillance High PoE Power Budget TL-SL1218MP complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems. Up to 250m Transmission for Surveillance TL-SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m which makes it perfect for IP Camera deployment in large area coverage.Video Quality Guaranteed Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.

Technical Specifications:
Total Number of Network Ports: 16
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 x Fast Ethernet PoE+, 2 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Fast Ethernet, Gigabit Ethernet
Network Technology: 10/100Base-T, 10/100/1000Base-T, 1000Base-X
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: Yes
Number of SFP Slots: 2
Layer Supported: 2
Networking Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 250 W
Input Voltage: 120 V AC, 230 V AC
Frequency: 50 Hz, 60 Hz
Power Source: Power Supply
Power Consumption: 15 W
Product Material: Metal
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7"
Width: 17.3"
Depth: 7.1"
Package Contents:

16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch, Power Cable, Installation Guide, 2 x Mounting Brackets and the Fittings

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
