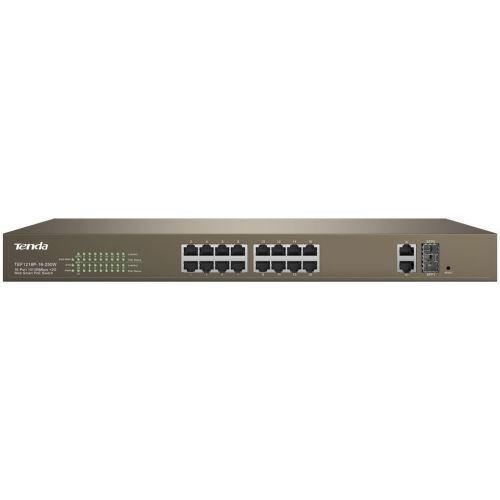

Tenda TEF1218P 16-Port 10/100 Mbps+2 Gigabit Web Smart POE Switch w/ 230W Output - 16 Ports - Manageable - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 3 Year Limited Warranty TEF1218P

Tenda TEF1218P 16-Port 10/100 Mbps+2 Gigabit Web Smart POE Switch w/ 230W Output - 16 Ports - Manageable - 2 Layer Supported - Modular - Twisted Pair, Optical Fiber - 3 Year Limited Warranty

Tenda TEF1218P 16-Port 10/100 Mbps+2 Gigabit Web Smart POE Switch w/ 230W Output TEF1218P-16-250W is a 16-Port 10/100Mbps +2-Port Gigabit TP/SFP Combo Web Smart PoE Switch developed by Tenda. It provides 16 10/100Base-Ethernet ports, 2 10/100/1000Base-Ethernet ports and 2 1000Base-X SFP combos. Ports 1-16 support IEEE 802.3af PoE (15.4W) and IEEE 802.3at PoE+ (30W) powering. The total PoE output is 230W. By using Cat 5 twisted pair, the device can provide data and power for APs, IP cameras, IP phones, and other PoE devices. Moreover,by using Cat 5e Ethernet and enabling extend mode, the transmission distance of data and power can be as long as 800 feets. In addition, it supports QVLAN, link aggregation, QoS, MAC binding, etc,which is a very economical solution that is time and cost saving.

Technical Specifications:
Total Number of Network Ports: 16
Uplink Port: No
Modular: Yes
Stack Port: No
Port/Expansion Slot Details: 16 x Fast Ethernet Network, 2 x Gigabit Ethernet Network, 2 x Gigabit Ethernet Expansion Slot
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Fast Ethernet, Gigabit Ethernet
Network Technology: 1000Base-X, 10/100/1000Base-T, 10/100Base-T
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Layer Supported: 2
Manageable: Yes
Power Source: Power Supply
Redundant Power Supply Supported: No
Height: 1.7"
Width: 17.3"
Depth: 11.2"
Weight (Approximate): 11.02 lb
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
