Taoglas Shockwave TLS.01 4G/3G/2G Terminal Antenna, 3M CFD200 SMA(M) - 698 MHz, 1.71 GHz, 698 MHz, 824 MHz, 880 MHz, 1.71 GHz, 1.85 GHz, 1.92 GHz, 2.30 GHz to 960 MHz, 1.58 GHz, 2.70 GHz, 806 MHz, 896 MHz, 960 MHz, 880 MHz, 1.99 GHz, 2.17 GHz, 2.69 GHz -

Taoglas Shockwave TLS.01 4G/3G/2G Terminal Antenna, 3M CFD200 SMA(M) - 698 MHz, 1.71 GHz, 698 MHz, 824 MHz, 880 MHz, 1.71 GHz, 1.85 GHz, 1.92 GHz, 2.30 GHz to 960 MHz, 1.58 GHz, 2.70 GHz, 806 MHz, 896 MHz, 960 MHz, 880 MHz, 1.99 GHz, 2.17 GHz, 2.69 GHz -
Brand: Taoglas
Part Number: TLS.01.305111
MSRP: $78.99
Availability: 10 or more
Condition: New
Price: $65.75
Qty:     - OR -   Add to Wish List
Add to Compare
Taoglas Shockwave TLS.01 4G/3G/2G Terminal Antenna, 3M CFD200 SMA(M) - 698 MHz, 1.71 GHz, 698 MHz, 824 MHz, 880 MHz, 1.71 GHz, 1.85 GHz, 1.92 GHz, 2.30 GHz to 960 MHz, 1.58 GHz, 2.70 GHz, 806 MHz, 896 MHz, 960 MHz, 880 MHz, 1.99 GHz, 2.17 GHz, 2.69 GHz - 5 dB - Cellular Network, GPS, Wireless Data Network, Outdoor, Indoor - Black - Panel - Omni-directional - SMA, N-Type Connector

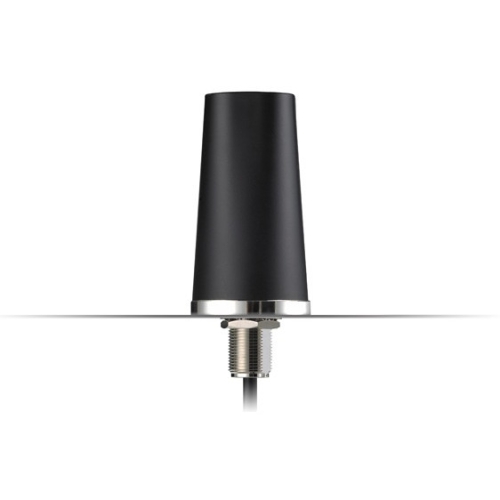

The Shockwave TLS.01.305111 is a permanent mount, waterproof, external 2G/3G/4G cellular and GPS antenna operating at 698-960/1575.42/1710-2700MHz with an N type male connector. It has been designed to be used on a Ground Plane. It can be used in mobile and fixed applications for 4G LTE wireless such as : Public safety HD Video Streaming Utilities and Smart Cities Fleet Management Agricultural Industrial This antenna has superior performance over wide-bands compared to traditional whip antennas. Up to 77% efficiency and with a minimum 2.2dBi peak gain over all cellular bands result when mounted on a 30x30 cm ground plane. Stable radiation patterns over low angles provides consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications.A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna.The TLS.01 antenna is IP67 waterproof and IP69K resistant against high pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G applications either in indoor or in harsh outdoor environments.


Technical Specifications:
Directivity: Omni-directional
Operating Frequency Range: 698 MHz to 960 MHz, 1575.42 MHz, 1710 MHz to 2700 MHz, 698 MHz to 806 MHz, 824 MHz to 896 MHz, 880 MHz to 960 MHz, 1710 MHz to 880 MHz, 1850 MHz to 1990 MHz, 1920 MHz to 2170 MHz, 2300 MHz to 2690 MHz
Antenna Gain: 5 dB
Connector Type: SMA, N-Type
Product Color: Black
Height: 3.13"
Diameter: 1.65"
Form Factor: Panel
Weight (Approximate): 9.52 oz
Application/Usage: Cellular Network, GPS, Wireless Data Network, Outdoor, Indoor
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
