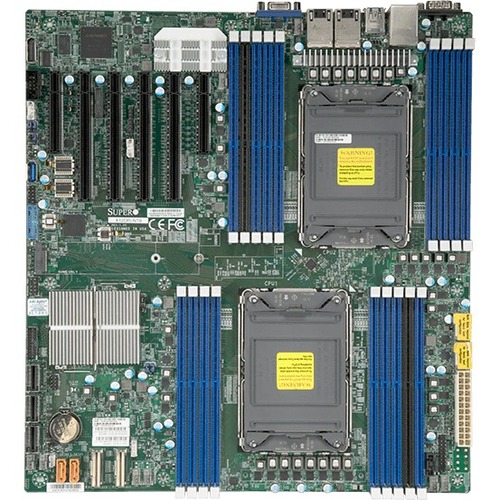

Supermicro X12DPi-N6 Workstation Motherboard - Intel Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Extended ATX - Xeon Processor Supported - 4 TB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 18 x Memory Slots - Gigabit Ethernet - 14 x SATA Int

Supermicro X12DPi-N6 Workstation Motherboard - Intel Chipset - Socket LGA-4189 - Intel Optane Memory Ready - Extended ATX - Xeon Processor Supported - 4 TB DDR4 SDRAM Maximum RAM - DIMM, RDIMM, LRDIMM - 18 x Memory Slots - Gigabit Ethernet - 14 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: C621A
Total Processor Supported: 1
Processor Socket: Socket LGA-4189
Processor Supported: Xeon
Number of Memory Slots: 18
Memory Form Factor: DIMM, RDIMM, LRDIMM
Maximum Memory Supported: 4 TB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 3200 MHz, 2933 MHz, 2666 MHz
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2600
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 4
Total Number of USB Ports: 4
Number of USB 3.2 Gen 1 Ports: 4
VGA: Yes
Number of Network (RJ-45) Ports: 2
Number of SATA Interfaces: 14
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 5
Number of Onboard USB 2.0 Ports: 2
Number of Onboard USB 3.2 Ports: 3
Form Factor: Extended ATX
Width: 13"
Depth: 12"
Brand Compatibility: Intel
