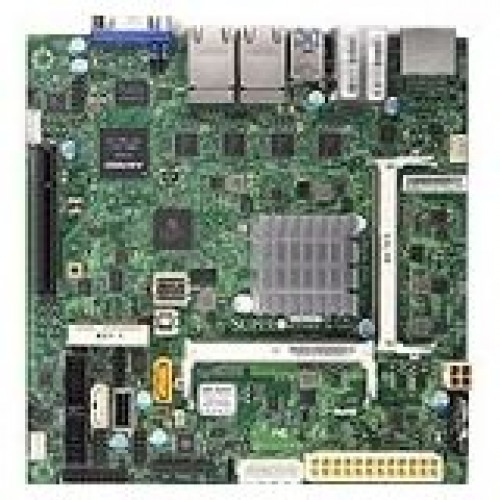

Supermicro X11SBA-F Server Motherboard - Intel Chipset - Socket BGA-1170 - Intel Pentium N3700 - Retail Pack - Mini ITX - 1 x Processor Support - 8 GB DDR3 SDRAM Maximum RAM - 1.60 GHz, 1.33 GHz, 1.07 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots

Supermicro X11SBA-F Server Motherboard - Intel Chipset - Socket BGA-1170 - Intel Pentium N3700 - Retail Pack - Mini ITX - 1 x Processor Support - 8 GB DDR3 SDRAM Maximum RAM - 1.60 GHz, 1.33 GHz, 1.07 GHz Memory Speed Supported - SoDIMM - 2 x Memory Slots - On-board Video Chipset - 2 x USB 3.0 Port - HDMI - ASPEED AST2400 - Gigabit Ethernet - 1 x PCI Express x8 Slots - 4 x USB Ports - VGA - DisplayPort - 2 x SATA Interfaces

UP Pentium® Motherboards - Socket FCBGA 1170 Embedded Boards based on Pentium N3700 / FCBGA 1170 SoC Intel® Pentium® (formerly Braswell) is a multicore System-On-Chip (SoC) based on a new microarchitecture and is manufactured on Intel''s industry leading tri-gate 14nm process. These processors support up to four cores with Intel® Burst Technology, which dynamically controls the performance and power of both cores and graphics-boosting performance exactly where and when it is needed and saving energy when it counts. Intel® HD Graphics deliver an exceptional visual experience and take Intel® built-in visuals to the next level. Intel® Wireless Display3 - lets you beam your apps and content such as movies, photos, and music to an HDTV with a simple wireless connection. New System-on-a-Chip (SoC) Intel® Pentium® Processors Balance Cost, Performance, and Power for Everyday Computing.

Technical Specifications:
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket BGA-1170
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Pentium
Integrated Processor Model: N3700
Number of Memory Slots: 2
Memory Form Factor: SoDIMM
Maximum Memory Supported: 8 GB
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz
Controller Type: Serial ATA/600
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 1
Total Number of PCI Express Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 2
VGA: Yes
HDMI: Yes
DisplayPort: Yes
Number of SATA Interfaces: 2
Total Number of Onboard USB Ports: 5
Form Factor: Mini ITX
Width: 6.7"
Depth: 6.7"
