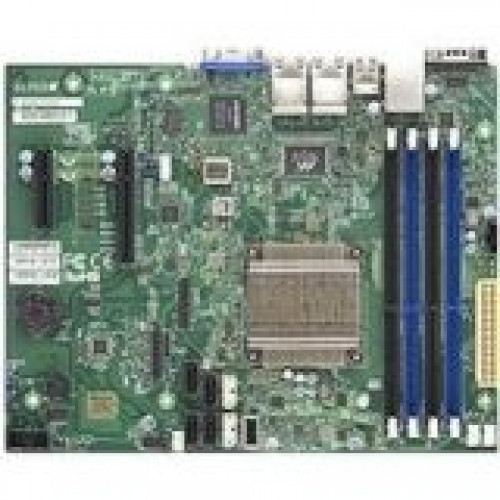

Supermicro A1SRM-2758F Desktop Motherboard - Intel Chipset - Socket BGA-1283 - Intel Atom C2758 - 64 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 5 x RJ-45 - 6 x SATA Interfaces MBD-A1SRM-2758F-O

Supermicro A1SRM-2758F Desktop Motherboard - Intel Chipset - Socket BGA-1283 - Intel Atom C2758 - 64 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 5 x RJ-45 - 6 x SATA Interfaces MBD-A1SRM-2758F-O
Brand: Supermicro
Part Number: MBD-A1SRM-2758F-O
MSRP: $515.99
Availability: 10 or more
Condition: New
Price: $429.55
Qty:     - OR -   Add to Wish List
Add to Compare
Supermicro A1SRM-2758F Desktop Motherboard - Intel Chipset - Socket BGA-1283 - Intel Atom C2758 - 64 GB DDR3 SDRAM Maximum RAM - 4 x Memory Slots - Gigabit Ethernet - 5 x RJ-45 - 6 x SATA Interfaces

C2000 Series BOARDS (System-on-Chip)Supermicro''s motherboards based on Intel® Atom™ processor C2000 series System-on-Chip (formerly Avoton & Rangeley) are well-suited for entry-level server platforms and embedded IPC market.


Technical Specifications:
Chipset Manufacturer: Intel
Processor Socket: Socket BGA-1283
Integrated Processor Manufacturer: Intel
Integrated Processor Type: Atom
Integrated Processor Model: C2758
Integrated Processor Core: Octa-core (8 Core)
Number of Memory Slots: 4
Memory Form Factor: UDIMM
Maximum Memory Supported: 64 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz
Controller Type: Serial ATA/600, Serial ATA/300
Onboard Video: On-board Video Chipset
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Graphics Memory Technology: DDR3 SDRAM
Graphics Memory Accessibility: Shared
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 2
PCI Express Standard: PCI Express 2.0
Total Number of PCI Express Slots: 2
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Serial Port: Yes
VGA: Yes
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 5
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 3
Number of Onboard USB 2.0 Ports: 3
Onboard Serial Header: Yes
Onboard LEDs Header: Yes
Form Factor: Micro ATX
Width: 9.6"
Depth: 7.5"
Compatibility: Supermicro SuperChassis

1U Chassis:

CSE-813MTQ-202CB, SC510, SC512, SC813M/TQ2U Chassis:
SC823M/TQ
Certifications & Standards: ACPI 5.0
