Startech.Com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - 2 x 9-pin DB-9 Male RS-422/485 Serial Universal PCI - RoHS, TAA Compliance PCI2S4851050

StarTech.com 2 Port PCI RS422/485 Serial Adapter Card with 161050 UART - 2 x 9-pin DB-9 Male RS-422/485 Serial Universal PCI - RoHS, TAA Compliance

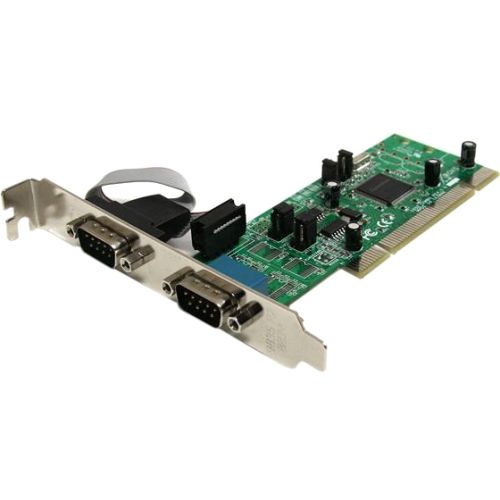

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot. The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU. With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots. Backed by a StarTech.com lifetime warranty and free lifetime technical support.

Technical Specifications:
Host Interface: Universal PCI
Data Transfer Rate: 128kB/s
UART Type: 161050
Platform Supported: PC
Number of Serial Ports (External): 2
Form Factor: Plug-in Card
Card Height: Dual-profile
Height: 1.8"
Width: 0.6"
Length: 4.7"
Weight (Approximate): 2 oz
Package Contents:

2 Port PCI RS422/485 Serial Adapter Card with 161050 UART, Standard and Low Profile/half-height Brackets, Driver CD

Environmentally Friendly: Yes
Environmental Certification: RoHS, WEEE, REACH
Country of Origin: Taiwan
TAA Compliant: Yes
