Detail overview

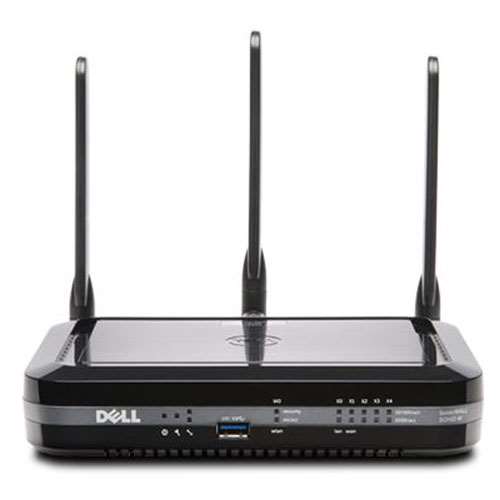

Sonicwall - Dell Soho Wireless-n - Security Appliance (01-ssc-0648) :
Processor / Memory / Storage :
Processors Installed : 2 X 800 Mhz
Ram : 1 Gb
Networking :
Form Factor : External
Ports Qty : 5
Connectivity Technology : Wireless, Wired
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet, Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11n
Network / Transport Protocol : Tcp/ip, Pptp, Udp/ip, L2tp, Icmp/ip, Ipsec, Pppoe, Dhcp
Routing Protocol : Ospf, Rip-1, Rip-2, Bgp, Static Ip Routing, Policy-based Routing (pbr)
Remote Management Protocol : Snmp 2, Snmp 3, Http, Https, Cli
Frequency Band : 2.4 Ghz, 5 Ghz
Performance : Firewall Throughput : 300 Mbps ¦ Full Deep Packet Inspection (dpi) Throughput : 50 Mbps ¦ Ips Throughput : 100 Mbps ¦ Anti-malware Throughput : 50 Mbps ¦ Firewall Throughput (imix) : 60 Mbps ¦ Ssl Inspection Throughput : 15 Mbps ¦ Vpn Throughput : 100 Mbps ¦ Connection Rate : 1800 Connections Per Second
Capacity : Virtual Interfaces (vlans) : 25 ¦ Ssl Vpn Licenses : 1 (maximum 10) ¦ Vpn Tunnels (site-to-site) : 10 ¦ Ipsec Vpn Clients : 1 (maximum 5) ¦ Spi Connections : 25000 ¦ Dpi Connections : 25000 ¦ Authenticated Users (internal Database) : 150 ¦ Single Sign-on (sso) Users : 250
Features : Firewall Protection, Vpn Support, Pat Support, Vlan Support, Stateful Packet Inspection (spi), Dos Attack Prevention, Content Filtering, Port Mirroring, Ipv6 Support, Antivirus Analysis, Intrusion Prevention System (ips), Url Filtering, Deep Packet Inspection (dpi), Ddos Attack Prevention, Wi-fi Multimedia (wmm) Support, Anti-spam Protection, Anti-malware Protection, Quality Of Service (qos), Dead Peer Detection (dpd), Ipsec Nat-traversal (nat-t), Dhcp Server, Bandwidth Control, Common Access Card (cac) Reader Support, Anti-spyware Protection, Dhcp Relay, 3g/4g Usb Dongle Support, Netflow, Diffserv Code Point (dscp) Support, Single Sign-on (sso) Support, Anti-virus Protection, Keyword Filtering
Encryption Algorithm : Des, Triple Des, Md5, Aes, Sha-1, Peap, Ttls, Tkip, Wpa, Wpa2, Wpa-psk, 128-bit Aes, 192-bit Aes, 256-bit Aes, Wep
Authentication Method : Radius, Ldap, Internal User Database, Active Directory, Extensible Authentication Protocol (eap), Xauth Authentication
Compliant Standards : Ieee 802.11b, Ieee 802.11a, Ieee 802.11g, Ieee 802.11i, Ieee 802.11n
Ip Telephony :
Voip Protocols : Sip, H.323 V3, H.323 V4, H.323 V1, H.323 V2, H.323 V5
Antenna :
Antenna : External Detachable
Antenna Qty : 3
Expansion / Connectivity :
Interfaces : 4 X 1000base-t - Rj-45 ¦ 1 X 1000base-t - Rj-45 ( Wan ) ¦ 1 X Usb 3.0 - Type A ¦ 1 X Console - Rj-45
Power :
Power Device : External Power Adapter
Voltage Required : Ac 120/230 V ( 50/60 Hz )
Power Consumption Operational : 11.3 Watt
Power Provided : 24 Watt
