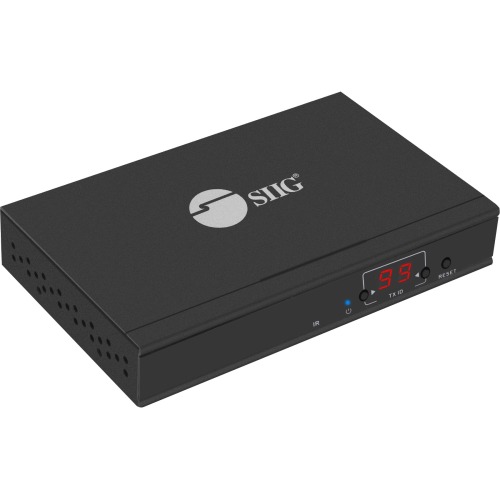

SIIG HDMI Over IP Extender / Matrix with IR - Transmitter - 1080p - Through CAT5e/6 up to 120M CE-H23B11-S1
Brand: Siig, Inc
Part Number: CE-H23B11-S1
MSRP: $182.99
Availability: 10 or more
Condition: New
Price: $151.95
Qty:     - OR -   Add to Wish List
Add to Compare
SIIG HDMI Over IP Extender / Matrix with IR - Transmitter - 1080p - Through CAT5e/6 up to 120M

Receives high definition 1080p HDMI signals from a source device and extends the signal through economical CAT5e/6 cabling to a HDMI display device up to 120 meters using advanced HDBitT technology, use with HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S1) sold separately Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Receiver (part # CE-H23C11-S1) sold separately Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images Supports IR pass back function to control the source device from RX location Supports computer control software to select and switch between source devices (Matrix only) Supports HDbit-T protocol with H.264 compression over IP HDMI output on the transmitter allows you to monitor the HDMI signal at the source location RS-232 pass-through connection to control RS-232 enabled devices at either direction


Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Maximum Operating Distance: 393.70 ft
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Product Color: Black
Transmitter Height: 0.94"
Transmitter Width: 3.27"
Transmitter Depth: 5.24"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 9.60 oz
Package Contents:
    HDMI Over IP Extender / Matrix with IR - Transmitter, Power Adapter, IR Blaster Extension Cable, 2 x Mounting Ears , 4 x Screw Kit , Remote Control, User Reference Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
