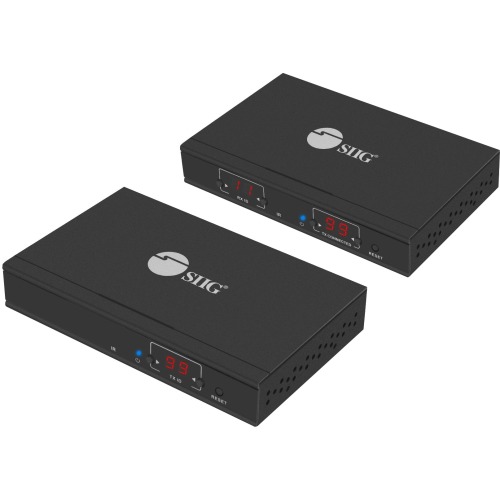

SIIG HDMI Over IP Extender / Matrix with IR - Kit - 1 Input Device - 1 Output Device - 393.70 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Serial Port - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Rack-mountable CE-H23A11-S1

SIIG HDMI Over IP Extender / Matrix with IR - Kit - 1 Input Device - 1 Output Device - 393.70 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Serial Port - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - Rack-mountable

Extends high definition 1080p HDMI signals from a source device to a display device through economical CAT5e/6 cabling up to 120 meters using advanced HDBitT over IP technology Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S1) and receiver units (part# CE-H23C11-S1) sold separately Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images Supports IR pass back function to control the source device from RX location Supports computer control software to select and switch between source devices (Matrix only) Supports HDbit-T protocol with H.264 compression over IP HDMI output on the transmitter allows you to monitor the HDMI signal at the source location RS-232 pass-through connection to control RS-232 enabled devices at either direction

Warning: This product can expose you to chemicals including Cadmium, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Technical Specifications:
Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 393.70 ft
Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080
Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 2
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6
Product Color: Black
Transmitter Height: 0.94"
Transmitter Width: 3.27"
Transmitter Depth: 5.24"
Form Factor: Rack-mountable
Transmitter Weight (Approximate): 1.20 lb
Package Contents:

HDMI Over IP Extender / Matrix with IR - Kit, 2 x Power Adapters , IR Blaster Extension Cable and IR Receiver Extension Cable, 4 x Mounting Ears , 8 x Screw Kit , Remote Control, User Reference Guide

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
