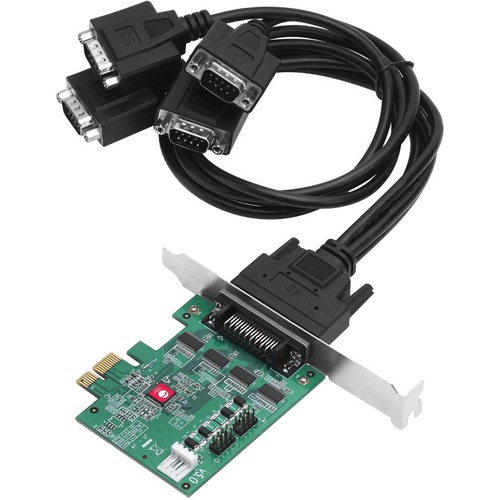

SIIG DP CyberSerial 4S PCIe Board - PCI Express 2.0 x1 - 4 x DB-9 RS-232 Serial Via Cable - Plug-in Card - TAA Compliant - TAA Compliance JJ-E40011-S5

SIIG DP CyberSerial 4S PCIe Board - PCI Express 2.0 x1 - 4 x DB-9 RS-232 Serial Via Cable - Plug-in Card - TAA Compliant - TAA Compliance

Adds four RS-232 serial ports to PCI Express enabled computer systems. Replaces part # JJ-E40011-S4 Note: Replaces part # JJ-E40011-S4 Easily adds four RS232 DB9 serial ports through an available PCI Express slot PCI Express 1-lane (x1) adapter works with any width PCI Express slot Four high-speed 16550 UART RS-232 serial ports support asynchronous baud rates up to 921Kbps Built-in 256-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.) Power is configurable via jumpers with silk-screened settings on PCB for easy identification and setup Supports hardware and software flow control, 5, 6, 7, 8 and 9-bit serial format Onboard power connector provides reliable power source for devices that require power Dual-profile PCB design fits full size and low-profile system form factor with included full and low profile brackets

Warning: Reproductive Harm - www.P65Warnings.ca.gov.

Technical Specifications:
Host Interface: PCI Express 2.0 x1
Maximum Data Transfer Rate: 921 kbit/s
UART Type: 16550
Platform Supported: PC
Ports Expandability: 4 x DB-9 RS-232 - Serial, Via Cable
Product Color: Green
Form Factor: Plug-in Card
Card Length: Full-length
Height: 0.9"
Width: 3.7"
Thickness: 4.7"
Weight (Approximate): 1.60 oz
Package Contents:

DP CyberSerial 4S PCIe Board, Low Profile Bracket, 4-Port fan-out Cable (DFP-36pin), Y-Split Power Cable, 4 x Voltage Jumper, Driver CD, User Manual

System Requirements:

PCI Express-enabled system with an available PCI Express slot, Windows 10 / 8.x / 7, Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008

Environmentally Friendly: Yes
Environmental Certification: WEEE, RoHS
Country of Origin: Taiwan
TAA Compliant: Yes
