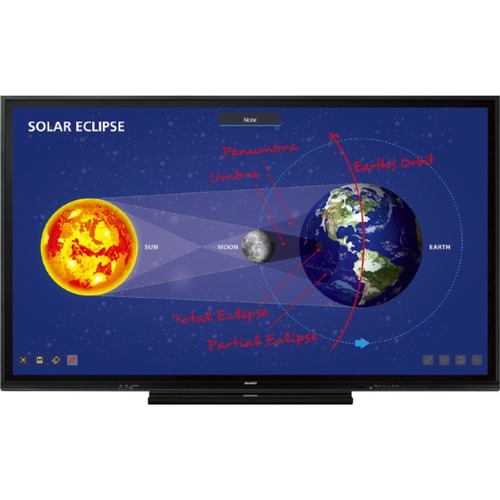

Sharp AQUOS BOARD PN-C861H Interactive Whiteboard - 86" - Touch-on - Infrared - 4 Users Supported - 74.63" x 41.94" Active Area - Multi-touch Screen - Wireless - Serial - HDMI - 2 x Number of USB 2.0 Ports - Windows, Mac, Chrome OS, Android

Sharp AQUOS BOARD PN-C861H Interactive Whiteboard - 86" - Touch-on - Infrared - 4 Users Supported - 74.63" x 41.94" Active Area - Multi-touch Screen - Wireless - Serial - HDMI - 2 x Number of USB 2.0 Ports - Windows, Mac, Chrome OS, Android
Brand: Sharp
Part Number: PNC861H
MSRP: $10,478.99
Availability: 10 or more
Condition: New
Price: $8,732.21
Qty:     - OR -   Add to Wish List
Add to Compare
Sharp AQUOS BOARD PN-C861H Interactive Whiteboard - 86" - Touch-on - Infrared - 4 Users Supported - 74.63" x 41.94" Active Area - Multi-touch Screen - Wireless - Serial - HDMI - 2 x Number of USB 2.0 Ports - Windows, Mac, Chrome OS, Android

Looking for a smart, interactive display for your office or classroom? Meet the all-in-one Sharp PN-C861H, PN-C751H and PN-CE701H AQUOS BOARD interactive display systems that make all your visual communications more lively and productive. Available in three sizes-86" Class (85 9/16" diagonal), 75" Class (74 1/2" diagonal) and 70" Class (69 1/2" diagonal), respectively-this series opens up an affordable path to pristine 4K Ultra HD resolution. A pre-installed launcher makes it quick and easy to start up and use the interactive whiteboard. Your lecture, presentation, or lesson can now be more creative and involving.


Technical Specifications:
Screen Size: 86"
Resolution (DPI): 3840 x 2160
Surface Type: Touch-on
Movement Detection Technology: Infrared
Number of Users Supported: 4
Active Area: 74.63" x 41.94"
Multi-touch Screen: Yes
Connectivity Technology: Wireless
Serial: Yes
HDMI: Yes
Number of USB 2.0 Ports: 2
Input Voltage: 120 V AC, 230 V AC
Platform Supported: Windows, Mac, Chrome OS, Android
Height: 46.3"
Width: 78.3"
Depth: 4.4"
Weight (Approximate): 176.40 lb
Package Contents:
    AQUOS BOARD PN-C751H Interactive Whiteboard, Passive Pen

Additional Information: Main Accessories:
    AC Power Cord, Remote Control Unit, Remote Control Unit Battery (AAA size) × 2, Set-up Manual, Blank Sticker, Cable Clamp × 3, USB Cable, Pen Tray, SHARP Pen software (CD-ROM), Touch Pen × 2, Wireless Adapter
Power Consumption: 530 W

Operating Temperature: 5°C to 35°C

Operating Humidity: 20% to 80% RH (no condensation)

Mounting:
    4 points, 700 × 400 mm pitch, M8 screw
Speaker Output: 10 W + 10 W

Expansion Slot:
    19 V, 4.74 A (power supplied when expanding the functions with an optional part )
System

CPU: Arm® Cortex®-A53 processor (quad core)

Memory: 1 GB

Internal Storage: 8 GB

External Interface

Front:
    USB port (2.0-compliant, Main unit & OPS) × 1
Rear:
    LAN port (10BASE-T/100BASE-TX) × 1, USB port (2.0-compliant, Main unit) × 2
Wireless LAN: Compliant with IEEE802.11ac/n/a/g/b

Video Color System: NTSC (3.58 MHz)/NTSC (4.43 MHz)/PAL/PAL60 /SECAM

Input Terminal

Front:
    HDMI (HDCP2.2 compatible, HDR10 supported) × 1
Rear:
    PC analog: Mini D-sub 15-pin × 1, HDMI (HDCP2.2 compatible, HDR10 supported) × 2, 3.5 mm-diameter mini stereo jack × 1, AV mini jack × 1, Component mini jack × 1, RS-232C × 1
Computer Input:

Video:
    Analog RGB (0.7 Vp-p) [75 ], HDMI
Synchronization: Horizontal/vertical separation (TTL: positive/negative)

Plug & Play: VESA DDC2B

Touch Pen

Function Button:
N/A (passive pen)

Touchscreen

PC Connection Port: USB (2.0 compliant) (Type B) × 2 (Front × 1, Rear × 1)

Power Supply for Touch Panel: Supplied from main unit

Multi Touch: 20 points

Protection Glass/Thickness: Approx. 4.0 mm Shock resistance: 130 cm

LCD Panel

Max. Display Colors (approx.): 1.07 billion colors

Pixel Pitch (H × V): 0.4935 × 0.4935 mm

Max. Brightness (average): 400 cd/m2

Contrast Ratio:
    1, 200 : 1
Viewing Angle (H/V): 178°/178° (CR 10)

Response Time: 8 ms (gray to gray, avg.)

Backlight:
    LED, Direct Lit
Installation: Landscape
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
