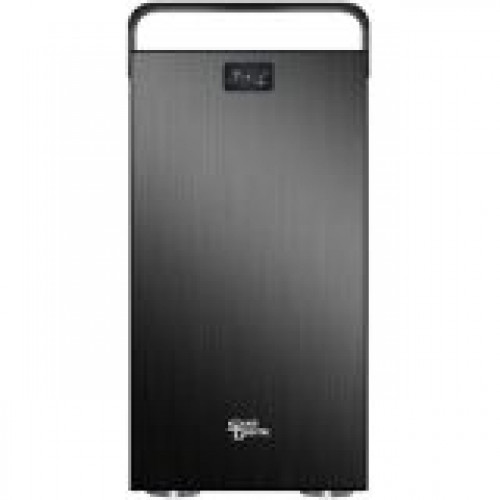

Sans Digital MobileSTOR MS12X6+B - 12 Bay SATA/SAS to 6G SAS Expander JBOD Enclosure (Black) - 12 x HDD Supported - 48 TB Supported HDD Capacity - 12 x SSD Supported - 48 TB Supported SSD Capacity - 6Gb/s SAS, Serial ATA/600 Controller - RAID Supported JB

Sans Digital MobileSTOR MS12X6+B - 12 Bay SATA/SAS to 6G SAS Expander JBOD Enclosure (Black) - 12 x HDD Supported - 48 TB Supported HDD Capacity - 12 x SSD Supported - 48 TB Supported SSD Capacity - 6Gb/s SAS, Serial ATA/600 Controller - RAID Supported JBOD - 12 x Total Bays - 12 x 3.5" Bay - Tower - RoHS Compliance-RoHS Compliance

The MobileSTOR MS12X6+B series is a 12 bay mini-SAS SAS expander tower comprised of the same engines as the AccuSTOR / EliteSTOR enterprise level rackmount storage. Utilizing the same engine structure as the enterprise level rackmounts, the MobileSTOR utilize SAS expander technology, and provides up to 24 Gb/s or 2400MB/s of data bandwidth to fulfill the most demanding application. The MS12X6+B supports both SATA or SAS 6Gb/s solid state drives and hard drives and is backward compatible to 3Gbps SAS & SATA SSD and HDDs. By utilizing the latest SAS expander technology, the MS12X6+B supports up to 12 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 60 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca, ATTO, Highpoint and LSI 6G RAID controller, the MS12X6+B is capable of delivering over 1500MB/s in read/write performance with RAID controller, doubling the existing 3G SAS expander bandwidth. Drives status information is provided by the LED. All necessary hardware comes standard including mini-SAS cable, hot-swappable cooling fan, and hard drives tray modules. The MS12X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.

Technical Specifications:
Number of Hard Drives Supported: 12
Total Hard Drive Capacity Supported: 48 TB
Number of Solid State Drive Supported: 12
Total Solid State Drive Capacity Supported: 48 TB
Number of Total Expansion Bays: 12
Number of 3.5" Bays: 12
Controller Type: 6Gb/s SAS, Serial ATA/600
RAID Supported: Yes
RAID Levels: JBOD
Host Interface: Mini-SAS
Input Voltage: 110 V AC, 220 V AC
Maximum Power Supply Wattage: 300 W
Height: 19.5"
Width: 8"
Depth: 13"
Form Factor: Tower
Weight (Approximate): 28 lb
Package Contents: MobileSTOR MS12X6+B - 12 Bay SATA/SAS to 6G SAS Expander JBOD Enclosure (Black), 8 x Removable Tray Modules, 1 x Power Cord, 1 x Mini-SAS Cable, 1 x Quick Installation Manual & CD
Certifications & Standards: CE, FCC, UL
Platform Supported: PC, Mac
Environmentally Friendly: Yes
Environmental Certification: RoHS
