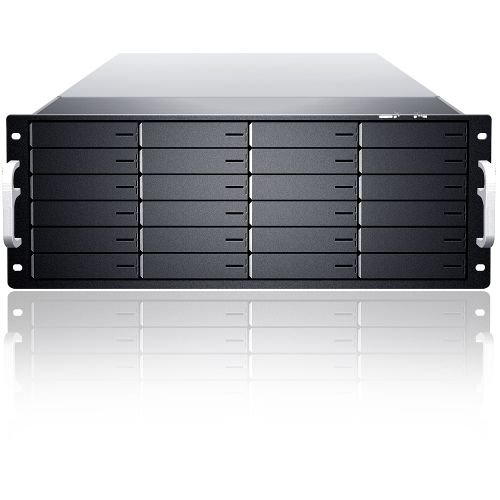

Sans Digital EliteSTOR ES424X6+B DAS Array - 24 x HDD Supported - 72 TB Supported HDD Capacity - 24 x SSD Supported - 72 TB Supported SSD Capacity - RAID Supported JBOD - 24 x Total Bays - 24 x 3.5" Bay - 4U - Rack-mountable KT-ES424X6+B

Sans Digital EliteSTOR ES424X6+B DAS Array - 24 x HDD Supported - 72 TB Supported HDD Capacity - 24 x SSD Supported - 72 TB Supported SSD Capacity - RAID Supported JBOD - 24 x Total Bays - 24 x 3.5" Bay - 4U - Rack-mountable

The EliteSTOR ES424X6+B is a 4U SAS 6G JBOD rackmount for high capacity storage solution. Utilizing the latest 6G SAS expander technology, the ES424X6+B provides over 24 Gb/s or 2400MB/s of bandwidth to fulfill the most demanding application. The ES424X6+B supports SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES424X6+B supports up to 24 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES424X6+B is capable of delivering over 1700MB/s in read and 1500MB/s write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES424X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.

Technical Specifications:
Number of Hard Drives Supported: 24
Total Hard Drive Capacity Supported: 72 TB
Number of Solid State Drive Supported: 24
Total Solid State Drive Capacity Supported: 72 TB
Number of Total Expansion Bays: 24
Number of 3.5" Bays: 24
RAID Supported: Yes
RAID Levels: JBOD
Drive Interface: Serial ATA/600, 6Gb/s SAS
Host Interface: Mini-SAS
Number of Power Supplies Installed: 3
Maximum Power Supply Wattage: 650 W
Redundant Power Supply: Yes
Height: 7"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 4U
Weight (Approximate): 54 lb
Package Contents: EliteSTOR ES424X6+B DAS Array, Mini-SAS Cable
Certifications & Standards: FCC, UL, CE
Environmentally Friendly: Yes
Environmental Certification: RoHS
