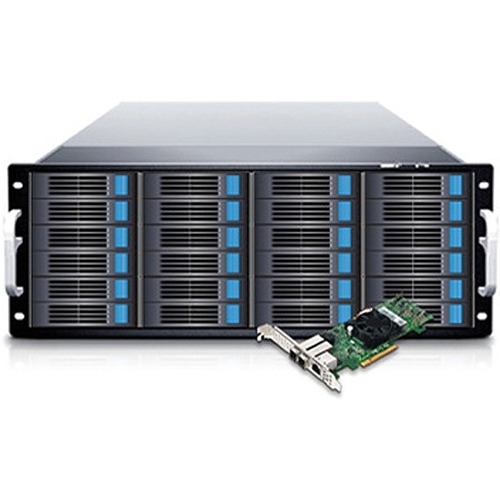

Sans Digital EliteSTOR ES424X12HP - 4U 24 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller - 24 x HDD Supported - 96 TB Supported HDD Capacity - 24 x SSD Supported - 12Gb/s SAS, Serial ATA/600 Controller - RAID Supported 0, 1, 3, 5, 6,

Sans Digital EliteSTOR ES424X12HP - 4U 24 Bay 12G SAS/SATA to 12G Expander with 12G PCIe 3.0 RAID 6 Controller - 24 x HDD Supported - 96 TB Supported HDD Capacity - 24 x SSD Supported - 12Gb/s SAS, Serial ATA/600 Controller - RAID Supported 0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBOD, 00, 0, 1, 1E, 10+0, 10, 3, 5, 6, 3+0, ... - 24 x Total Bays - 24 x 3.5" Bay - 4U - Rack-mountable - RoHS Compliance

The EliteSTOR ES424X12HP is a complete 4U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology, the ES424X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES424X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES424X12HP supports up to 24 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card, and the ES424X12HP is capable of delivering over in 3,000MB/s read and write performance, doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0, 1, 3, 5, 6, 10, 50, 60 support with enterprises features and performances. System status information is provided by the LED, including hard drives, power supply and cooling fan status, as well as RAID controller''s event log and e-mail notification system. All necessary hardware comes standard including RAID controller card, mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES424X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up, Server 2003 or up), Apple (OS X 10.4 or up), Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported.

Technical Specifications:
Number of Hard Drives Supported: 24
Total Hard Drive Capacity Supported: 96 TB
Number of Solid State Drive Supported: 24
Number of Total Expansion Bays: 24
Number of 3.5" Bays: 24
Controller Type: 12Gb/s SAS, Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBOD, 00, 0, 1, 1E, 10+0, 10, 3, 5, 6, 3+0, 50, 60
Host Interface: Mini-SAS
Power Source: Power Supply
Number of Power Supplies Installed: 3
Maximum Power Supply Wattage: 650 W
Redundant Power Supply: Yes
Height: 7"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 4U
Weight (Approximate): 54 lb
Package Contents: EliteSTOR ES424X12HP DAS Array, Bracket, 12G PCIe 3.0 RAID Controller, HD Mini-SAS Cable, Cooling Fan, Tray Modules, Build-in Mounting Rail
Certifications & Standards: CE, FCC, UL
Platform Supported: PC, Mac
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
