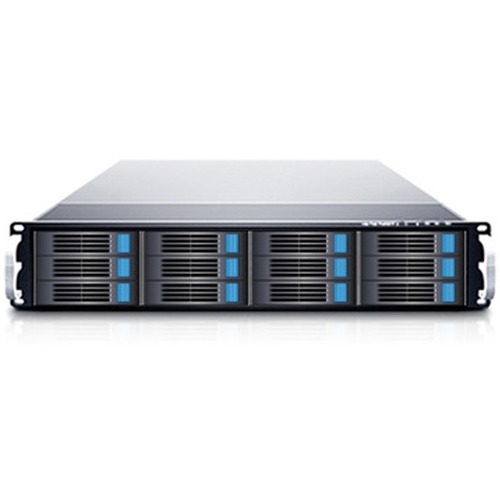

Sans Digital EliteRAID ER212UTI6G DAS/SAN Array - 12 x HDD Supported - 96 TB Supported HDD Capacity - Serial ATA Controller0, 1, 3, 5, 6, 10, 30, 50, 60, 1E, JBOD - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - 2U - Rack-mountable KT-ER212UTI6

Sans Digital EliteRAID ER212UTI6G DAS/SAN Array - 12 x HDD Supported - 96 TB Supported HDD Capacity - Serial ATA Controller0, 1, 3, 5, 6, 10, 30, 50, 60, 1E, JBOD - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - 2U - Rack-mountable KT-ER212UTI6
Brand: Sans Digital
Part Number: KT-ER212UTI6G
MSRP: $3,443.99
Availability: 10 or more
Condition: New
Price: $2,869.84
Qty:     - OR -   Add to Wish List
Add to Compare
Sans Digital EliteRAID ER212UTI6G DAS/SAN Array - 12 x HDD Supported - 96 TB Supported HDD Capacity - Serial ATA Controller0, 1, 3, 5, 6, 10, 30, 50, 60, 1E, JBOD - 12 x Total Bays - 12 x 3.5" Bay - Gigabit Ethernet - 2U - Rack-mountable

The EliteRAID ER212UTI6G is a 2U 12-bay rackmount with USB 3.0 / eSATA / iSCSI interfaces (4x Gigabit Ethernet), and embedded hardware RAID engine. The hardware RAID feature offloads complex RAID calculations from the client''s operating system to the RAID engine, which increases the overall read/write performance and eliminates OS compatibility issues. The built-in Web GUI management interface and event notification with SMTP E-mail and SNMP trap allow administrators to monitor unit status remotely via web browser without the need for additional software. In addition to RAID 5, Mirroring (RAID 1) and Striping (RAID 0), the ER212UTI6G also supports RAID 6 to protect stored data against up to two hard drive failures. JBOD is supported to allows drives to be accessed individually. Utilizing SATA drive interfaces, the ER212UTI6G is guaranteed to achieve the high performance with fail-safe file protection.


Technical Specifications:
Number of Hard Drives Supported: 12
Total Hard Drive Capacity Supported: 96 TB
Number of Solid State Drive Supported: No
Ethernet Technology: Gigabit Ethernet
Number of Total Expansion Bays: 12
Number of 3.5" Bays: 12
Controller Type: Serial ATA
RAID Levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, 1E, JBOD
Drive Interface: Serial ATA
Host Interface: eSATA, USB 3.0
Height: 3.5"
Width: 19"
Depth: 23"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 42 lb
Package Contents:
    EliteRAID ER212UTI6G DAS/SAN Array, 1 x Power Cord, 2 x Hard Drive Keys, 12 x Removable Tray Modules, 1 x Quick Installation Manual

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
