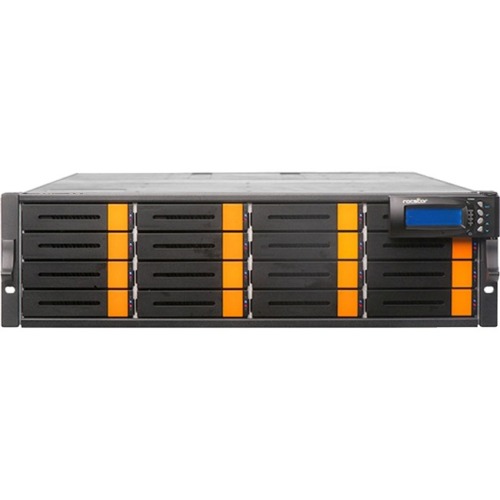

Rocstor 12Gb SAS 16-Bay Redundant RAID Storage - 16 x HDD Supported - 160 TB Installed HDD Capacity - 16 x SSD Supported - 1 x 6Gb/s SAS Controller - RAID Supported - 16 x Total Bays - Ethernet - NTP, SNMP - 3U - Rack-mountable R3USDSS6-S160

Rocstor 12Gb SAS 16-Bay Redundant RAID Storage - 16 x HDD Supported - 160 TB Installed HDD Capacity - 16 x SSD Supported - 1 x 6Gb/s SAS Controller - RAID Supported - 16 x Total Bays - Ethernet - NTP, SNMP - 3U - Rack-mountable R3USDSS6-S160
Brand: Rocstorage, Inc
Part Number: R3USDSS6-S160
MSRP: $15,195.99
Availability: 10 or more
Condition: New
Price: $12,663.24
Qty:     - OR -   Add to Wish List
Add to Compare
Rocstor 12Gb SAS 16-Bay Redundant RAID Storage - 16 x HDD Supported - 160 TB Installed HDD Capacity - 16 x SSD Supported - 1 x 6Gb/s SAS Controller - RAID Supported - 16 x Total Bays - Ethernet - NTP, SNMP - 3U - Rack-mountable

3U 12Gb SAS - 6Gb SAS Redundant RAID Subsystem The Enteroc S630 SAS RAID features 12Gb SAS host performance to increase system efficiency and performance. It features high capacity expansion, with 16 hot-swappable SAS2/SATA3 hard disk drive bays in a 19-inch 3U rackmount unit, scaling to a maximum storage capacity in the terabyte range. The S630 can connect with expansion enclosures to accommodate up to 256 drives. The Enteroc S630 series also supports dual redundant controllers which provide better fault tolerance and higher reliability of system operation. Controller Redundancy Dual-active RAID controller with cache mirroring through dedicated high speed bus Automatic synchronization of firmware version in the dual-active mode Redundant controller operation with active/active and failover/failback function Redundant flash image for controller availability Management port seamless take-over High availability DataBolt™ Bandwidth Optimizer for balance faster host and slower SAS or SATA devices RAID level 0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD Unparalleled Drive Support Support for native 4K and 512 byte sector SAS and SATA devices Support HDD firmware update SSD automatic monitor clone (AMC) support S.M.A.R.T. support Energy Saving Low power consumption & Low heat production Support intelligent power management to save energy and extend service life RAID Management Access terminal menu by telnet via a LAN port API library for customer to write its own monitor utility Field-upgradeable firmware in flash ROM Firmware-embedded manager via RS-232 port Firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration SAP management utility to easily manage multiple RAID units in the network


Technical Specifications:
Number of Hard Drives Supported: 16
Total Hard Drive Capacity Installed: 160 TB
Number of Solid State Drive Supported: 16
Number of Solid State Drive Installed: No
Ethernet Technology: Ethernet
Number of Total Expansion Bays: 16
Number of Controllers: 1
Controller Type: 6Gb/s SAS
RAID Supported: Yes
Host Interface: 12Gb/s SAS
Protocols: NTP, SNMP
Maximum Power Supply Wattage: 500 W
Height: 5.2"
Width: 19"
Depth: 23.2"
Form Factor: Rack-mountable
Rack Height: 3U
Country of Origin: Taiwan
