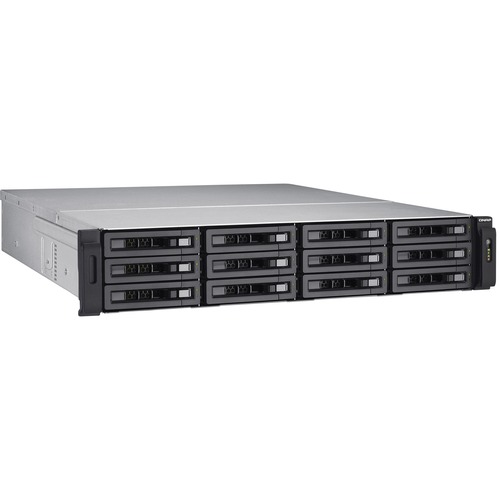

QNAP TES-1885U-D1531-32G SAN/NAS Storage System - Intel Xeon D-1531 Hexa-core (6 Core) 2.20 GHz - 12 x HDD Supported - 18 x SSD Supported - 32 GB RAM DDR4 SDRAM - RAID Supported 0, 1, 5, 6, 10, 50, 60, JBOD - 18 x Total Bays - 6 x 2.5" Bay - 12 x 2.5

QNAP TES-1885U-D1531-32G SAN/NAS Storage System - Intel Xeon D-1531 Hexa-core (6 Core) 2.20 GHz - 12 x HDD Supported - 18 x SSD Supported - 32 GB RAM DDR4 SDRAM - RAID Supported 0, 1, 5, 6, 10, 50, 60, JBOD - 18 x Total Bays - 6 x 2.5" Bay - 12 x 2.5"/3.5" Bay - 6 x Total Slot(s) - Gigabit Ethernet, 10 Gigabit Ethernet - 2 USB Port(s) - Network (RJ-45) - QES/QTS 4.2 - TCP/IP, LACP, CIFS, SMB 2.0, SMB 3.0, NFSv3, NFSv4, FTP, FTPS, TFTP, HTTP, ... - 4 GB Flash Memory Capacity - 2U - Rack-moun - TAA Compliance

Powered by an Intel® Xeon® D processor, the powerful enterprise-class TES-1885U is open for two operating systems - either the FreeBSD-based QES or Linux-based QTS. While QES supports ZFS for the utmost reliability and allows near-limitless snapshots, block-level data deduplication and real-time data compression, QTS features Qtier Technology, SSD cache, and an abundance of value-added apps to realize storage efficiency and diverse usage applications. The TES-1885U gives the flexibility to choose from two operating systems, enabling businesses to deploy proper operating systems on multiple TES-1885U based on their needs and goals in different stages. Intel® Xeon® D processor optimizes performance and efficiency Powered by an advanced 14nm Intel® Xeon® D 64-bit SoC processor with an integrated PCH, up to 128GB DDR4 ECC RDIMM RAM / 64GB DDR4 non-ECC UDIMM RAM, and with two built-in 10GbE SFP+ ports, the 12Gb/s SAS-enabled TES-1885U delivers outstanding performance for data transmission and applications. With a thermal design power of only 20-65W, the TES-1885U fulfills demands for both performance and energy saving. Excellent hardware: immensely, durable & compact The TES-1885U supports SAS 12Gb/s 3.5"/2.5" drives, allowing for SAS 12Gb/s and SATA 6Gb/s hard drives and SSDs. Businesses can create the most cost-effective storage by implementing suitable drives based on their needs. Dual OS options system inside a single rackmount NAS The TES-1885U provides flexibility for choosing between uncompromising reliability and greater versatility. The QES operating system is suited for enterprise-level storage with maximized business continuity, or the QTS operating system for enjoying application storage for greater functionality. QES operating system based on FreeBSD & ZFS The TES-1885U supports the brand-new QES (QNAP Enterprise Storage) operating system, which is based on the simple and efficient FreeBSD kernel and the ZFS file system that has been proven through years of experience to be most suitable for high-end enterprise applications. Continuing the same user experience with the QTS operating system, QES provides business users with an easy learning curve to quickly deploy the TES-1885U, and provides the best storage solution jointly with the current QNAP NAS.

Technical Specifications:
Number of Hard Drives Supported: 12
Number of Solid State Drive Supported: 18
Flash Memory Capacity: 4 GB
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: D-1531
Processor Core: Hexa-core (6 Core)
Processor Speed: 2.20 GHz
Standard Memory: 32 GB
Memory Technology: DDR4 SDRAM
Ethernet Technology: Gigabit Ethernet, 10 Gigabit Ethernet
Number of Total Expansion Bays: 18
Number of 2.5" Bays: 6
Number of 2.5"/3.5" Bays: 12
Number of Total Expansion Slots: 6
Expansion Slot Type: SFP+, PCI Express 3.0 x8, PCI Express 2.0 x4, PCI Express 3.0 x4
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
Total Number of USB Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 4
Operating System: QES/QTS 4.2
Protocols: TCP/IP, LACP, CIFS, SMB 2.0, SMB 3.0, NFSv3, NFSv4, FTP, FTPS, TFTP, HTTP, HTTPS, SSH, iSCSI, SNMP, SMTP, SMSC, Bonjour, NFS, UPnP, AFP, Telnet, FXP, SSL/TLS
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 450 W
Redundant Power Supply: Yes
Height: 3.5"
Width: 17.4"
Depth: 20.9"
Form Factor: Rack-mountable
Rack Height: 2U
Weight (Approximate): 33.82 lb
Package Contents:

TES-1885U-D1531-32G SAN/NAS Storage System, 4 x Ethernet Cable, 2 x Power Cord, Flat Head Screws (For 3.5" HDD), Flat Head Screws (For 2.5" HDD), Quick Installation Guide, A03 Series (Chassis) Rail Kit
