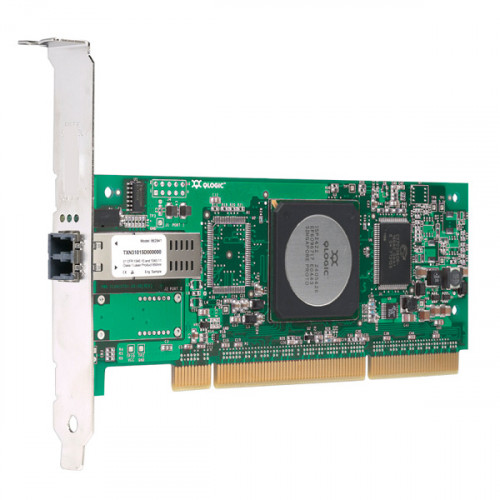

QLOGIC Sanblade 4gb Single Channel Pci Express X4 Low Profile Fibre Channel Hba Card Only With Standard Bracket QLA2460

Detail overview

Description

the Qla2460 Is The First, True Enterprise Class, 4-gbps To Pci-x 2.0 Host Bus Adapter. The Qla2460 Not Only Delivers Unprecedented Levels Of Performance And Availability, But Also Intelligent Networking Features Specific To Enterprise Class Data Centers. The Qla2460 Hba Is The Highest Performing And Most Reliable Hba In The Industry. It Delivers Unmatched Performance By Leveraging A Single Asic Design, Combining A Unique Hardware Architecture, And Support For The Pci-x 2.0 266-mhz Ddr Bus Speed. More Importantly, The Qla2460 Hba Provides New Intelligent Storage Networking Features That Redefine The Enterprise Class Hba, Providing Increased Data Protection, Advanced Frame Routing, And Enterprise Wide Management Capabilities.

Main Specifications

device Type : Network Adapter
form Factor : Low Profile
interface (bus) Type : Pci-x 266mhz Low Profile
connectivity Technology : Wired
data Link Protocol : 4gb Fibre Channel
data Transfer Rate : 4.24 Gbps
network / Transport Protocol: Fcip
status Indicators : Link Activity
features : Full Duplex Capability, Auto-negotiation
interfaces : 1 X Network 4gb Fibre Channel Lc Multi-mode X 2
compatible Slots : 1 X Pci-x 266 Mhz Low Profile
fibre Channel : Fc-al-2, Fc-fcp-2, Fc-fla, Fc-fs, Fc-gs-2, Fc-gs-3, Fc-ph, Fc-ph-2, Fc-ph-3, Fc-plda, Fc-tape

System Requirements

os Required: Microsoft Windows 2000, Novell Netware 6.x, Microsoft Windows Xp Professional, Sunsoft Solaris 9, Suse Linux Enterprise Server 8, Microsoft Windows Server 2003, Red Hat Enterprise Linux As 3, Sunsoft Solaris 10, Suse Linux Enterprise Server 9, Red Hat Enterprise Linux As 4.

Dimensions

depth : 6.7 In
height: 2 In
