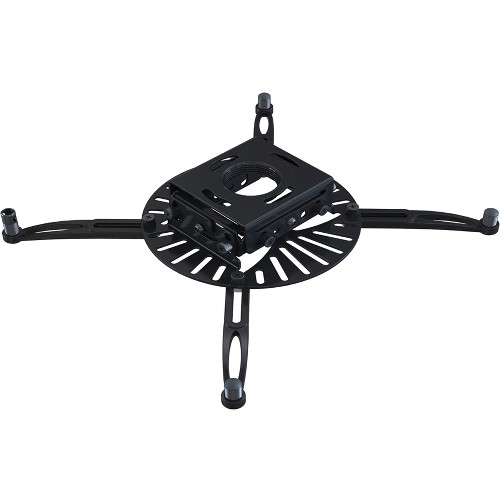

Premier Mounts PDS-PLUS Low-Profile Universal Projector Mount - 75 lb - Black PDS-PLUS

Premier Mounts PDS-PLUS Low-Profile Universal Projector Mount - 75 lb - Black

Combining the ultra-low profile with "Ultimate Universality" , the new PDS-Plus is the most versatile projector mount ever. Designed for rock-solid performance with 12 points of positive contact for "set it and forget it" accuracy and a simple hook configuration base box design for quick attachment.

Technical Specifications:
Device Supported: Projector
Maximum Load Capacity: 75 lb
Features: Pitch Adjustment, Roll Adjustment, Yaw Adjustment, Locking Mechanism, Cable Management
Product Color: Black
Height: 2.8"
Width: 7.5"
Depth: 7.5"
Weight (Approximate): 4.92 lb
Package Contents:

PDS-PLUS Low-Profile Universal Projector Mount Includes:

12 x (M6 x 12mm) Phillips Pan Head with Integrated Split Washer, 2 x (#14 x 2") Wood Screws, 12 x (M6 x 12mm) Security Screw, 1 x (M6 x 8mm) Security Set Screw, 1 x M3 Security Allen Wrench, 8 x Plastic Barrel Caps, 4 x Mounting Legs - Short, 4 x (M2.5 x 12mm) Security Head Screw, 4 x (M3 x 16mm) Security Head Screw, 10 x M3 Flat Washer, 4 x (M4 x 12mm) Security Head Screw, 4 x (M5 x 12mm) Security Head Screw, 8 x (M6 x 12mm) Security Head Screw, 1 x (¼-20 x 5/16") Security Head Screw, 1 x PDS Base Box, 2 x Nylon Spacer, 2 x Flat Washer, 1 x (M6 x 8mm) Socket Head Set Screw, 1 x Escutcheon Ring, 4 x External Tooth Lock Washers, 1 x M5 Security Allen Wrench, 1 x PDS-Plus Base, 4 x Mounting Legs - Long, 4 x (M2.5 x 12mm) Phillips Head Screw, 4 x (M3 x 16mm) Phillips Head Screw, 10 x M3 Flat Washer, 4 x (M4 x 12mm) Phillips Head Screw, 4 x (M5 x 12mm) Phillips Head Screw, 8 x (M6 x 12mm) Phillips Head Screw, 1 x (¼-20 x 5/16") Phillips Head Screw
Application/Usage: Projector
Additional Information: Roll: 15°, Yaw: 360°, Cable routing through body
Compatibility:

Projector

Country of Origin: Taiwan
