Description

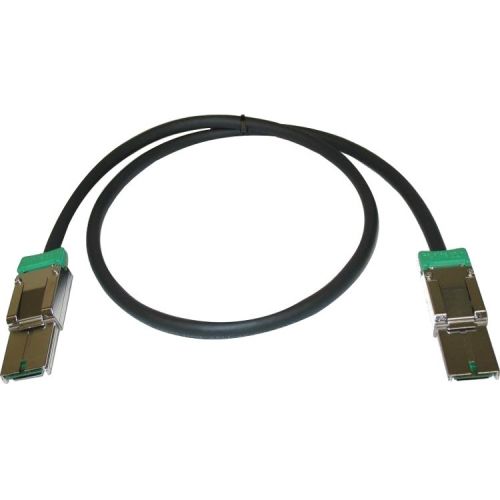

The OSS-PCIe-CBL-X4-2M is a high-performance PCI Express x4 external cable designed to extend PCIe connectivity between host systems and expansion chassis. Built for low-latency, high-bandwidth data transmission, it supports demanding applications such as GPU expansion, high-speed I/O, and edge compute deployments.

This cable features PCIe x4 connectors on both ends with crossover wiring, enabling seamless, plug-and-play interconnection while maintaining signal integrity. A positive latching mechanism ensures secure retention in high-vibration or mission-critical environments.

Key Features

• PCIe x4 external cable (male-to-male)
• 2 meter (6.5 ft) length
• Fully compliant with PCI-SIG PCIe cable specification
• Supports x4 PCIe lanes + sideband signals:
  • Power-on reset
  • SMBus (clock/data)
  • 100 MHz reference clock
  • Wake / presence signals
• Positive latching connectors for secure connection
• Designed for high-speed, low-latency data transmission

Technical Specifications

General

• Manufacturer: One Stop Systems
• Part Number: OSS-PCIe-CBL-X4-2M
• Product Type: PCIe Data Transfer Cable

Mechanical

• Cable Length: 2 m (6.56 ft)
• Connector Type: PCIe x4 (male-to-male)
• Locking Mechanism: Positive latch / retention
• Pitch (mating interface): 0.80 mm
• Cable Type: Round, shielded
• Wire Gauge: 28 AWG
• Circuits Loaded: 38

Electrical

• PCIe Lanes: x4
• Data Rate: Up to ~10 Gbps full duplex (typical PCIe x4 cable performance)
• Max Voltage: 30V DC
• Max Current: 1A per contact

Construction / Environmental

• Material: Zinc alloy / metal housing
• Shielding: Yes
• Ingress Protection: Dustproof / waterproof construction (varies by build)

Typical Applications

• PCIe expansion systems (OSS GPU expansion chassis)
• High-performance computing (HPC)
• Edge AI / GPU acceleration
• Industrial and rugged embedded systems
• Server-to-expansion connectivity

Positioning Summary (for sales/use)

The OSS-PCIe-CBL-X4-2M is a reliable, standards-compliant PCIe interconnect optimized for short-range external expansion (2m) where signal integrity, secure locking, and deterministic performance are critical.
