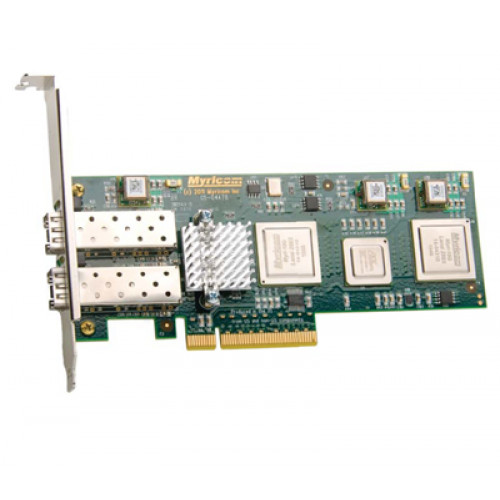

MYRICOM Two-port 10-gigabit Pci Express 2.0 X8 Ethernet Network Adapter 10G-PCIE2-8C2-2S

Detail overview

Product Details:

Myricom 10g-pcie2-8c2-2s Two-port 10-gigabit Pci Express 2.0 X8 Ethernet Network Adapter.

Technical Information:

Physical Characteristics:

Ports

• 10g-pcie2-8c2-2s: Dual 10gb/s Ethernet

Form Factor

• Low-profi Le Pci Express X8 Add-in Card

• 68.9mm X 167mm Exclusive Of The Pci Faceplate

• Total Thickness: 22mm

• Weight: 101.6g (0.224lb), Inclusive Of Standard Pci Faceplate

Host Port Interface Specifications:

Bus Interface

• Pci Express Gen2 (5 Gt/s) X8

Optional Pci Express Capabilities Supported

Advanced Error Reporting, Function-level Reset,device Serial Number, Up To 16 Outstanding Read Requests, Up To 2kb Maxpayloadsize For All Packet Types, Msi And Msi/x, Smbus Access.

Compliance

• Pci Express Card Electromechanical Specification Rev. 2.0

• Pci Express Base Specification Rev. 2.0 At 5gt/s Or 2.5 Gt/s

Ethernet Specifications:

Throughput

• ~9.9 Gb/s With A 9kb Mtu Or ~9.5 Gb/s With A 1500b Mtu Per Port


Ethernet Frame

• 1500 Byte Or 9000 Byte Mtu

Compliance

•ieee 802.3x

Stateless Offloads

• Ip And Tcp Checksum Offload, Send And Receive

• Tso (tcp Segmentation Offload, Also Known As Large Send Offload)

• Lro (large Receive Offload)

• Rss (receive-side Scaling)

• Interrupt Coalescing

• Multicast Filtering

Power

• Direct Attach : Typical-14.5w, Maximum-16.0w

• Sfp+ Sr/lr : Typical-14.7w, Maximum-16.2w

• Sfp+ Lrm : Typical-16.2w, Maximum- 17.7w
