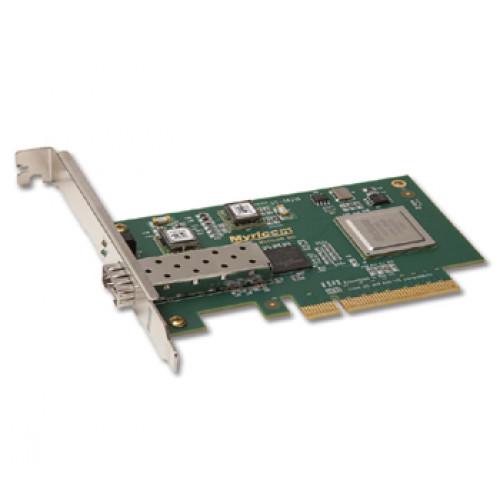

MYRICOM Single-port 10-gigabit Ethernet Network Adapter 10G-PCIE-8B-S

Detail overview

Product Details:

Myricom 10g-pcie-8b-s Single-port 10-gigabit Ethernet Network Adapter.

Technical Information:

Physical Characteristics:

Ports

• 10g-pcie-8b-s: Single 10gb/s Ethernet

Form Factor

• Low-profile Pci Express X8 Add-in Card

• 68.9mm X 112mm Exclusive Of The Pci Faceplate

• Total Thickness: 22mm

• Weight: 60g (0.132lb),inclusive Of Standard Pci Faceplate

Host Port Interface Specifications:

Bus Interface

• Pci Express (2.5 Gt/s) X8

Optional Pci Express Capabilities Supported

advanced Error Reporting, Function-level Reset,device Serial Number, Up To 16 Outstanding Read Requests, Up To 4kb Maxpayloadsize For All Packet Types, Msi And Msi/x, Smbus Access.

Compliance

• Pci Express Card Electromechanical Specifi Cation Rev. 2.0

• Pci Express Base Specifi Cation Rev. 2.0 At 2.5 Gt/s

Ethernet Specifications:

Throughput

• ~9.9 Gb/s With A 9kb Mtu Or ~9.5 Gb/s With A 1500b Mtu


Ethernet Frame

• 1500 Byte Or 9000 Byte Mtu

Compliance

•ieee 802.3x

Stateless Offloads

• Ip And Tcp Checksum Offl Oad, Send And Receive

• Tso (tcp Segmentation Offload, Also Known As Large Send Offload)

• Lro (large Receive Offload)

• Rss (receive-side Scaling)

• Interrupt Coalescing

• Multicast Filtering

Power

•direct Attach : Typical-3.9w, Maximum-4.1w

•sfp+ Sr/lr : Typical-4.9w, Maximum-5.6w
