Mobile Mark SMW412-3A3J3J2C-WHT-180 Antenna - 694 MHz, 1.70 GHz, 4.40 GHz to 894 MHz, 2.70 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, Wireless Data Network, GPS - White - Surface Mount - TNC, SMA, RP-SMA Connector SMW412-3A3J3J2C-WHT-180

Mobile Mark SMW412-3A3J3J2C-WHT-180 Antenna - 694 MHz, 1.70 GHz, 4.40 GHz to 894 MHz, 2.70 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, Wireless Data Network, GPS - White - Surface Mount - TNC, SMA, RP-SMA Connector SMW412-3A3J3J2C-WHT-180
Brand: Mobile Mark, Inc
Part Number: SMW412-3A3J3J2C-WHT-180
MSRP: $156.99
Availability: 10 or more
Condition: New
Price: $130.78
Qty:     - OR -   Add to Wish List
Add to Compare
Mobile Mark SMW412-3A3J3J2C-WHT-180 Antenna - 694 MHz, 1.70 GHz, 4.40 GHz to 894 MHz, 2.70 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, Wireless Data Network, GPS - White - Surface Mount - TNC, SMA, RP-SMA Connector

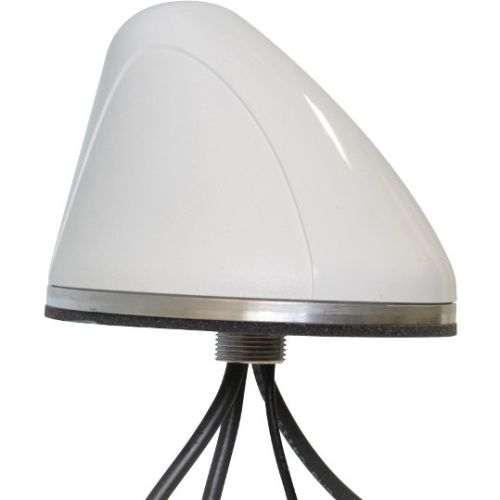

The SMW-412 Series Antennas features 4 elements in one antenna radome. The unique feature of this model is that the cellular element (Cable 1) is extremely widebanded and can cover: LTE at 700 MHz as well as the established 850/1900 GSM/CDMA bands, 1.7/2.1 AWS bands and WiMAX 2.5 all on a single board. This antenna is truly ready for any 4G rollout but is also compatible with earlier generation such as GPRS. See the spec table below for exact frequencies covered on each cable. In additional to covering all of the cellular bands on Cable 1, the antenna also covers 2.4/5 dual-band WiFi on Cables 2 & 3. Other specialized applications are possible, e.g. Public Safety coverage at 700 MHz & 4.9 GHz, Military at 4.4 GHz or DSRC at 5.9 GHz. The antenna is enclosed in a 4.2"D x 3.2"H (107 mm x 81 mm) weatherproof radome, and supplied with all mounting hardware and a sealing gasket. The radome is available in either black or white. The antennas are available in either surface mount or mag-mount models. The anten - nas can also be configured for combined GPS & Glonass use.
