Mobile Mark SMD-W - 3 Cable MIMO Antenna - 2.40 GHz, 4.90 GHz to 2.50 GHz, 6 GHz - 4 dBi - Wireless Data Network - White - Surface Mount - RP-SMA Connector SMD-W-3J3J-WHT-240

Mobile Mark SMD-W - 3 Cable MIMO Antenna - 2.40 GHz, 4.90 GHz to 2.50 GHz, 6 GHz - 4 dBi - Wireless Data Network - White - Surface Mount - RP-SMA Connector SMD-W-3J3J-WHT-240
Brand: Mobile Mark, Inc
Part Number: SMD-W-3J3J-WHT-240
MSRP: $123.99
Availability: 10 or more
Condition: New
Price: $102.88
Qty:     - OR -   Add to Wish List
Add to Compare
Mobile Mark SMD-W - 3 Cable MIMO Antenna - 2.40 GHz, 4.90 GHz to 2.50 GHz, 6 GHz - 4 dBi - Wireless Data Network - White - Surface Mount - RP-SMA Connector

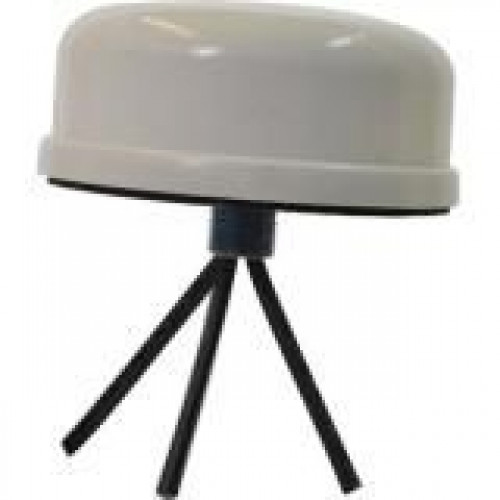

Many of the newest wireless networks, are moving towards greater use of MIMO (Multiple-Input-Multiple-Output) systems and MIMO Antennas.MIMO systems, also known as spatial multiplexing, transmit different data on different antenna elements. The net result is greater data throughput and improved bandwidth efficiency.Mobile Mark''s new MIMO Mobile Antenna provides two or three cable feeds, each with identical frequency coverage. Separate antenna elements are housed within a compact rugged radome.Each element is fed by a different cable; each cable covers the entire bandwidth specified.This Low Profile Surface Mount Antenna is housed in a rugged, UV Resistant, ASA radome that measures 1.5-inches (38mm) tall x 3.5-inches (89mm) in diameter.Standard configuration is Low Loss RF-195 cable with SMA Plug (Male).The SMD Antenna will stand up to harsh environments. It has a water ingress rating of IPx7 and has been tested to and passed Industry and Military shock and vibration standards.


Technical Specifications:
Operating Frequency Range: 2.4 GHz to 2.5 GHz, 4.9 GHz to 6.0 GHz
Antenna Gain (Isotropic): 4 dBi
Connector Type: RP-SMA
Product Color: White
Height: 1.50"
Diameter: 3.50"
Form Factor: Surface Mount
Weight (Approximate): 1 lb
Application/Usage: Wireless Data Network
