Mobile Mark LTMG502-3C3C3J3J2C-BLK-180 Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 3.70 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, GPS, Wireless Data Network, GLONASS - Black - Surface Mount - SMA, RP-SMA Connector LTMG502-

Mobile Mark LTMG502-3C3C3J3J2C-BLK-180 Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 3.70 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, GPS, Wireless Data Network, GLONASS - Black - Surface Mount - SMA, RP-SMA Connector LTMG502-
Brand: Mobile Mark, Inc
Part Number: LTMG502-3C3C3J3J2C-BLK-180
MSRP: $214.99
Availability: 10 or more
Condition: New
Price: $178.53
Qty:     - OR -   Add to Wish List
Add to Compare
Mobile Mark LTMG502-3C3C3J3J2C-BLK-180 Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 3.70 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, GPS, Wireless Data Network, GLONASS - Black - Surface Mount - SMA, RP-SMA Connector

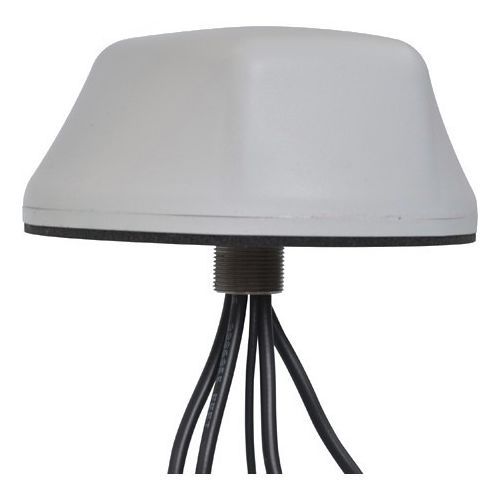

Mobile Mark''s LTM502 Series Multiband Diversity/MIMO antenna contains five separate antennas, all in one compact antenna housing: two broadband LTE/Cellular antennas, two dual-band WiFi antennas, and one GPS antenna. The LTM502 differs from the LTM501 in that the broadband LTE/Cellular element covers all LTE frequencies worldwide, from 694-3700 MHz. Both WiFi and LTE MIMO (multiple-input-multiple-output) modems offer greater speed and capacity than earlier generations of modems. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends. With 5-elements, the new LTM502 antenna is ideal for fleet management systems that combine GPS with both any Global LTE MIMO modem as well as WiFi MIMO modem. Measuring 5.5" (140mm) in diameter with a low profile of 2.38", the LTM series antennas take up significantly less space than multiple antennas and cut down on installation time and costs by offering a single mounting hole. The antennas are available in either surfacemount or mag-mount and can also be configured for combined GPS & Glonass use.


Technical Specifications:
Operating Frequency Range: 694 MHz to 960 MHz, 1710 MHz to 3700 MHz, 2.4 GHz to 2.5 GHz, 4.9 GHz to 6.0 GHz, 1575.42 MHz
Antenna Gain: 26 dB
Connector Type: SMA, RP-SMA
Product Color: Black
Height: 2.38"
Diameter: 5.50"
Form Factor: Surface Mount
Application/Usage: Cellular Network, GPS, Wireless Data Network, GLONASS
