Mobile Mark GPS Multiband Mag-Mount Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 2.17 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, Wireless Data Network, GPS, GLONASS - Black - Magnetic Mount - SMA, RP-SMA Connector MLTM501-3C

Mobile Mark GPS Multiband Mag-Mount Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 2.17 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, Wireless Data Network, GPS, GLONASS - Black - Magnetic Mount - SMA, RP-SMA Connector MLTM501-3C
Brand: Mobile Mark, Inc
Part Number: MLTM501-3C3C3J3J2C-BLK-144
MSRP: $246.99
Availability: 10 or more
Condition: New
Price: $205.29
Qty:     - OR -   Add to Wish List
Add to Compare
Mobile Mark GPS Multiband Mag-Mount Antenna - 694 MHz, 1.71 GHz, 2.40 GHz, 4.90 GHz to 960 MHz, 2.17 GHz, 2.50 GHz, 6 GHz, 1.58 GHz - 26 dB - Cellular Network, Wireless Data Network, GPS, GLONASS - Black - Magnetic Mount - SMA, RP-SMA Connector

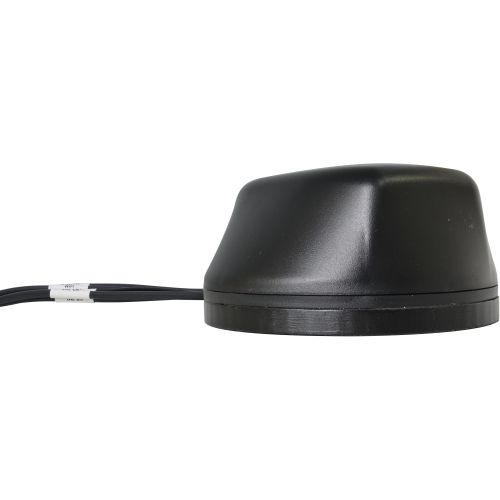

Mobile Mark''s LTM501 Series Multiband Diversity/MIMO antenna contains five separate antennas, all in one compact antenna housing: two LTE 700 MHz & Cellular antennas, two dual-band WiFi antennas, and one GPS antenna.MIMO (multiple-input-multiple-output) modems offer greater speed and capacity than earlier generations of modems. They achieve this by sending RF signals on multiple antenna elements to maximize the amount of information transmitted and received. To ensure optimum performance, the systems need multiple antennas on both the transmission and receive ends. With 5-elements, the new LTM antenna is ideal for fleet management systems that combine GPS with both an LTE MIMO modem as well as WiFi MIMO modem.Measuring 5.5" (140mm) in diameter with a low profile of 2.38" (60.4mm), LTM series antennas take up significantly less space than multiple antennas. The radome is available in either black or white. The antennas are available in either surface mount or mag-mount models. The antennas can also be configured for combined GPS & Glonass use.


Technical Specifications:
Operating Frequency Range: 694 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2.4 GHz to 2.5 GHz, 4.9 GHz to 6.0 GHz, 1575.42 MHz
Antenna Gain: 26 dB
Connector Type: SMA, RP-SMA
Product Color: Black
Height: 2.78"
Diameter: 5.50"
Form Factor: Magnetic Mount
Application/Usage: Cellular Network, Wireless Data Network, GPS, GLONASS
