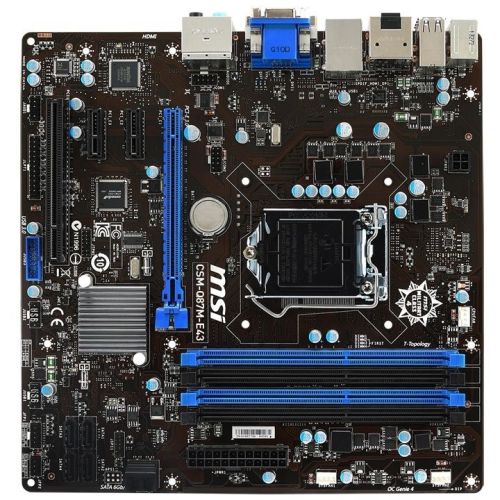

Micro-Star International MSI CSM-Q87M-E43 Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.33 GHz Memory Speed Supported - 4 x Memory Slots - Serial ATA/600 RAID Supported Con

MSI CSM-Q87M-E43 Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - Micro ATX - 1 x Processor Support - 32 GB DDR3 SDRAM Maximum RAM - 1.33 GHz Memory Speed Supported - 4 x Memory Slots - Serial ATA/600 RAID Supported Controller - CPU Dependent Video - HDMI - Intel - 7.1 Audio Channels - Gigabit Ethernet - 2 x PCI Express x1 Slots - 1 x PCI Express x16 Slots - 4 x USB Ports - S/PDIF - VGA - DisplayPort - DVI - 6 x SATA Interfaces
Technical Specifications:
Chipset Manufacturer: Intel
Chipset Model: Q87 Express
Total Processor Supported: 1
Processor Technology: vPro Technology
Processor Socket: Socket H3 LGA-1150
Processor Supported: Core i7, Core i5, Core i3, Pentium, Celeron
64-bit Processing: Yes
Number of Memory Slots: 4
Memory Form Factor: DIMM
Maximum Memory Supported: 32 GB
Memory Standard: DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500
Memory Technology: DDR3 SDRAM
Memory Speed Supported: 1600 MHz, 1333 MHz, 1066 MHz
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
Onboard Video: CPU Dependent Video
Graphics Controller Manufacturer: Intel
Graphics Controller Memory: 1.72 GB
Graphics Memory Technology: DDR3 SDRAM
Graphics Memory Accessibility: Shared
Sound Controller Manufacturer: Realtek
Sound Controller Model: ALC887
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 4
Number of PCI Slots: 1
PCI Express Standard: PCI Express 3.0, PCI Express 2.0
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 4
Audio Line In: Yes
Audio Line Out: Yes
Microphone Port: Yes
S/PDIF: Yes
Number of S/PDIF Out Ports: 1
VGA: Yes
HDMI: Yes
Number of HDMI Outputs: 1
DisplayPort: Yes
Number of DisplayPort Outputs: 1
DVI: Yes
Number of DVI Outputs: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
PS/2 Port: Yes
Number of PS/2 Ports: 2
Number of SATA Interfaces: 6
Total Number of Onboard USB Ports: 6
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.0 Ports: 2
Onboard Parallel Header: Yes
Onboard Serial Header: Yes
Onboard Audio Header: Yes
Power Supply Supported: ATX12V
Form Factor: Micro ATX
Width: 9.6"
Depth: 9.6"
Certifications & Standards: CE, FCC, KC (KOREA CERTIFICATION), BSMI, C-TICK
Environmentally Friendly: Yes
Environmental Certification: WEEE, China RoHS
Country of Origin: China
