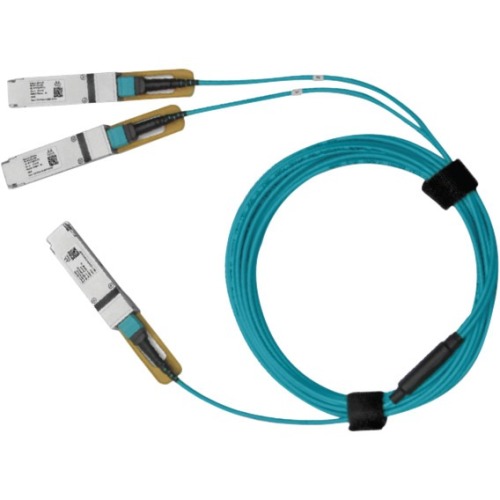

MELLANOX Active Fiber Hybrid Solution, ETH 100GbE to 2x50GbE, QSFP28 to 2xQSFP28, 3m - 9.84 ft Fiber Optic Network Cable for Network Device, Switch, Server - First End: 2 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - Splitter

Mellanox Active Fiber Hybrid Solution, ETH 100GbE to 2x50GbE, QSFP28 to 2xQSFP28, 3m - 9.84 ft Fiber Optic Network Cable for Network Device, Switch, Server - First End: 2 x QSFP28 Male Network - Second End: 1 x QSFP28 Male Network - 100 Gbit/s - Splitter Cable

Mellanox® MFA7A20 is a VCSEL-based (Vertical Cavity Surface-Emitting Laser), cost-effective, 100GbE to 2x50GbE, active optical splitter cable (AOC) designed for use in 100GbE Ethernet systems. The MFA7A20 cable is compliant with SFF-8665 for the QSFP28 pluggable solution. It provides connectivity between system units with a 100GbE connector on one side and two separate 50GbE connectors on the other side, such as a switch and two servers. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP28 end to the dual pair of each of the QSFP28 multiport ends. Each QSFP28 end of the cable comprises an EEPROM providing product and status monitoring information, which can be read by the host system. Mellanox''s unique, quality, active, fiber, cable solutions provide power-efficient connectivity for data center interconnects. It enables higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance, and durability.
