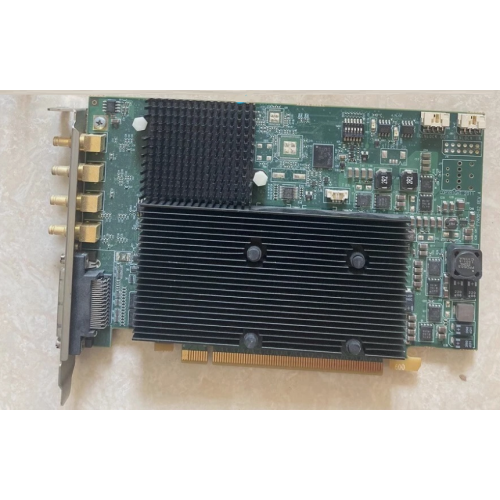

Matrox Graphics Card Frame Grabber 1GB PCIe High Profile Video Capture Card OHD1G2S 0771913-000

Matrox Graphics Card Frame Grabber 1GB PCIe High Profile Video Capture Card OHD1G2S 0771913-000

The Matrox OHD1G2S (marketed as Matrox Orion HD) is a high-performance graphics adapter with integrated video capture capabilities, designed for professional imaging applications that require standard definition (SD) and high definition (HD) video input and output handling. It is PCI Express (PCIe) x16 interface hardware that supports a variety of analog and digital video formats and is typically used in industrial imaging, medical imaging, surveillance, simulation, and other video-intensive applications.

Key Features

Hardware & Interface

• PCIe x16 half-length board for high bandwidth video transfer.

• 1 GB DDR SDRAM shared memory.

• Uses a Matrox-designed DirectX 9-compatible GPU for graphics rendering and overlay.

Video Capture & Output Capabilities

• Dual independent video inputs:

  • Two DVI-I ports (supporting analog RGB and digital DVI-D).

  • Two SDI video inputs.

• Four independent outputs:

  • Two DVI-I outputs (analog + digital).

  • Two SDI outputs.

• Simultaneous SD/HD acquisition and output paths.

Supported Video Formats & Resolutions

• Standard Definition (NTSC/PAL).

• High Definition up through 1080p @ up to 60 Hz.

• PC graphics up to 1920 × 1200 @ 60 Hz.

Signal Compatibility

• Supports a broad range of analog and digital video formats, including:

  • RGB, CVBS, YPbPr via DVI-I.

  • SDI digital video.

Software Support

• Compatible with Matrox Imaging Library (MIL) for industrial vision application development and Microsoft DirectShow drivers.

Accessories Included

• Adapter cables such as KX20 to 4 DVI-I and SMB to BNC adaptors for connectivity.

Typical Use Cases

• Industrial machine vision systems requiring synchronized capture from multiple video sources.

• Medical imaging setups needing high-quality SD/HD video capture.

• Simulation/training systems combining graphics and live video.

• Video surveillance with mixed analog/digital inputs.
