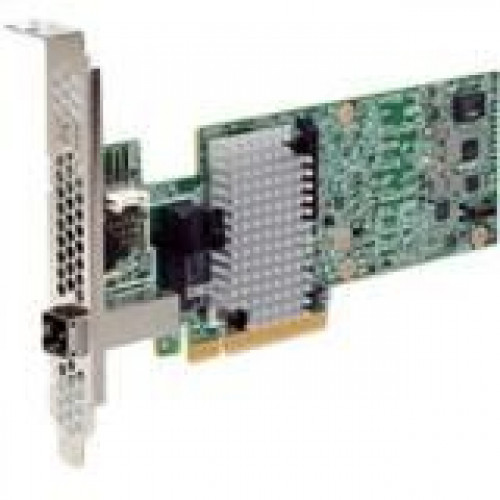

LSI Logic MegaRAID SAS 9380-4i4e SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 5, 6, 10, 50, 60, JBOD, 1 RAID Level - 8 Total SAS Port(s) - 4 SAS Port(s) Internal - 4 SAS Port(s) External - PC, Linux - 1 GB 05-25190

LSI Logic MegaRAID SAS 9380-4i4e SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 - Plug-in Card - RAID Supported - 0, 5, 6, 10, 50, 60, JBOD, 1 RAID Level - 8 Total SAS Port(s) - 4 SAS Port(s) Internal - 4 SAS Port(s) External - PC, Linux - 1 GB

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today''s applications and end users demand. The MegaRAID SAS 9380-4i4e 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications. Connect up to 240 SATA or SAS drives with four internal and four external 12Gb/s SAS ports Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements. Support critical, high-bandwidth applications with PCIe® 3.0 connectivity Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60 Add more protection and peace of mind with optional CacheVault® flash cache protection.

Technical Specifications:
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 5, 6, 10, 50, 60, JBOD, 1
Cache Memory: 1 GB
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 4
Number of SAS Ports (External): 4
SAS Connector Details: 1 x SFF-8643, 1 x SFF-8644
Height: 2.5"
Width: 6.6"
Form Factor: Plug-in Card
Card Height: Low-profile
Weight (Approximate): 1.32 lb
Package Contents:

MegaRAID SAS 9380-4i4e SAS Controller, QIG, LP Bracket

Platform Supported: PC, Linux
Environmentally Friendly: Yes
Environmental Certification: RoHS
