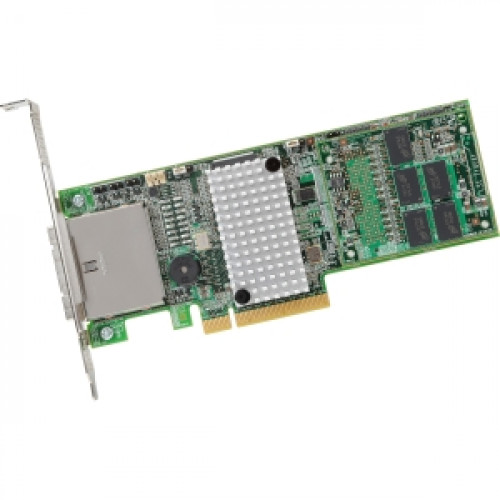

LSI LOGIC Megaraid 9285-8e 8-port 1gb Pcie 2.0 Sff-8088 Sata+sas Raid Controller With Both Brackets LSI00284

Detail overview

Lsi Logic Lsi00284 Megaraid 9285-8e 8-port 1gb Pcie 2.0 Sff-8088 Sata+sas Raid Controller With Both Brackets

Marketing Information:

The Megaraid Sas 9285-8e, With Eight External Ports, Delivers Two 800mhz Powerpc Processor Cores And A 72-bit Ddriii Interface That Drives 1gb Cache Memory. This Controller Is Ideal For Configuring External Storage Enclosures With High-performance Sas Hard Drives, High-capacity Sata Hard Drives Or Application-accelerating Solid State Drives (ssds) Or For Building More Sophisticated Configurations Using Lsi 6gb/s Sas Switch Products. Users Can Deploy The Megaraid Sas 9285-8e In Existing Hdd-based Server Environments To Help Achieve Significant Performance Gains. Alternatively, For Users Implementing Server Platforms Based On Solid State Storage, These Next-generation Megaraid Controllers Can Help Exploit The Potential Of Ssds For Unsurpassed Performance And Enterprise-class Reliability.

Technical Information:
Host Interface: Pci Express 2.0 X8
Data Transfer Rate: Up To 600 Mbps Per Port
Interfaces: # Serial Attached Scsi
# Serial Ata/600
Raid Supported: Yes
Raid Levels: 0 . 1 . 5 . 6 . 10 . 50 . 60
Drive Supported: # 64 X Logical
# Up To 240
Platform Supported: # Pc
# Sparc
Memory:
Standard Memory: 1 Gb Ddr3 Sdram

Interfaces/ports:
Ports: 2 X Sff-8088 Sas 600 - Mini-sas External

Physical Characteristics:
Form Factor: Low-profile Plug-in Card
Dimensions: 2.5 Height X 6.6 Width
