LSI LOGIC 12gb Pci-express 3.0 X8 Low Profile Fibre Channel Host Bus Adapter H5-25515-00F

Detail overview

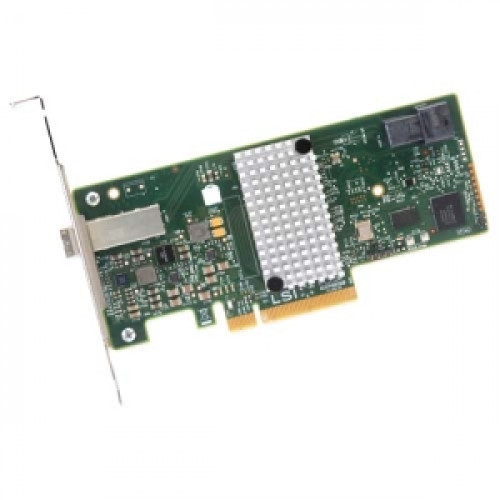

lsi Logic H5-25515-00f 12gb Pci-express 3.0 X8 Low Profile Fibre Channel Host Bus Adapter.

key Features

host Bus Type X8 Lane Pci Express 3.0

physical Dimensions Low Profile (2.6” X 6.0”)

devices Supported 1024 Non-raid Sas/sata Devices

external Connectors1 Mini-sas Hd Sff8644

fusion Mpt Support Fusion Mpt 2.5

internal Connectors1 Mini-sas Hd Sff8643

internal Ports 4

operating Temperature 0°c To 55°c

operating Voltage +12v +/-8%, 3.3v +/-9%

os Supportmicrosoft Windows, Linux (suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver, Installation Of An Lsi Driver Is Not Required.

pci Power14.2w

cable Supportpassive Copper, Active Optical (external Only)

i/o Controllerlsi Sas3008

mtbf > 2,800,000 Hours

operating Humidity5% To 90% Non-condensing

data Transfer Rates12gb/s Sas-3 Compliant
