Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE) - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rai

Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE) - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rail Mountable; One DB-25 Serial Port; One 10/100 Mbps Fast Ethernet RJ-45 Port

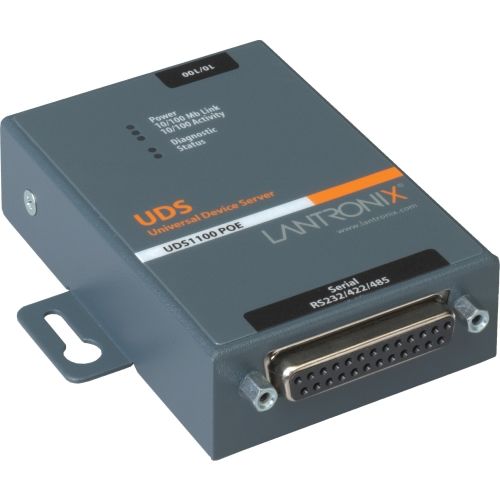

The UDS1100 Device Server with PoE enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS1100, virtually any piece of equipment can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick, simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network.

Technical Specifications:
Processor Manufacturer: Lantronix
Processor Speed: 48 MHz
Standard Memory: 256 KB
Memory Technology: SRAM
Ethernet Technology: Fast Ethernet
Network (RJ-45): Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 1
Input Voltage: 30 V DC
Power Consumption: 1.50 W
Form Factor: Wall Mountable
Height: 3.5"
Width: 2.5"
Depth: 0.9"
Weight (Approximate): 7.05 oz
Additional Information: Software-selectable RS232, RS422 or RS485
Certifications & Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3af, UL, CSA, FCC, CE, TUV, C-Tick, VCCI
