Lantronix 2 Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server - US Domestic 110 VAC - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Wall Mountable; Rail Mountable; Two DB-9 Serial Ports; One 10/100 Mbps Fast Etherne

Lantronix 2 Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server - US Domestic 110 VAC - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Wall Mountable; Rail Mountable; Two DB-9 Serial Ports; One 10/100 Mbps Fast Ethernet RJ-45 Port

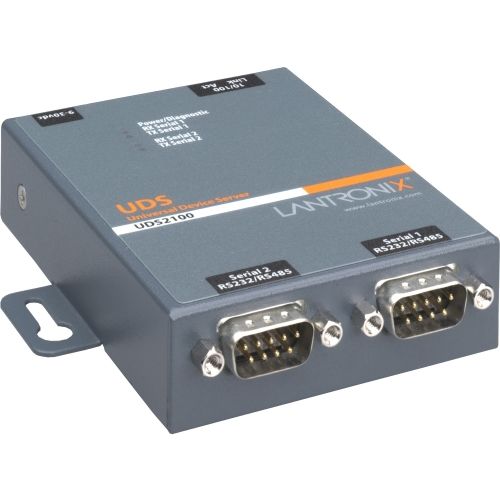

The UDS2100 device server enables users to connect, manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS2100, two pieces of equipment of virtually any type can be added to an Ethernet network in a matter of minutes! This dual-port device server is a quick, simple and inexpensive way to bring the advantages of remote management and control to equipment not currently connected to a network.

Technical Specifications:
Ethernet Technology: Fast Ethernet
Network (RJ-45): Yes
Serial Port: Yes
Number of Network (RJ-45) Ports: 1
Number of Serial Ports: 2
Form Factor: Wall Mountable
Height: 0.9"
Width: 2.8"
Depth: 3.7"
Weight (Approximate): 14.11 oz
Package Contents: UDS2100 2-Port Device Server, Power supply, DeviceInstaller configuration software, Com Port Redirector software and related utilities
Additional Information:

Supporting RS232, RS422 and RS485
