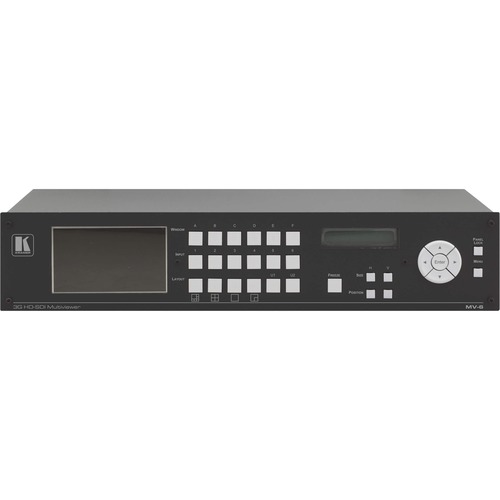

Kramer MV-6 3G HD-SDI Multiviewer - 1920 x 1080 - Full HD - Twisted Pair - 6 x 3 - 1 x HDMI Out - 12 x SDI In - 2 x SDI Out MV-6

The MV-6 is a versatile, high-performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The MV-6-MD is certified for medical applications. Max. Data Rate - 3Gbps. HDTV Compatible. Standards Compliance - Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility). Kramer re-Klocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances. Multi-Standard Operation - SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M). Re-Clocking Looping Inputs. Multi-Video Output Formats - 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion. Front Panel Preview Screen - 16:9 4.3in color LCD displaying the output of the unit. Text Overlay - A text label/icon can be added inside each window. Each label has text/background color, alignment, size, etc settings. Screen Handling Buttons - Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts. Flexible Control Options - Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software). Worldwide Power Supply - 100-240V AC. APPLICATIONS Professional broadcasting and production studios. Presentation applications.
